  Integrated electronic circuit design and simulation solutions in E-XD++ visualization component library is an important solution, E-XD++ Visualization Graphics is a 100% Visual C++ / MFC  based Vector Editor, it ships with complete source codes,  it contains the most popular electronic circuit design, editing capabilities features. From the first version of E-XD++, it already has the full features on circuit network diagram Design, the current version of E-XD++ has performed its functions to extreme, basically, if you want to build any very professional  Multisim NI Schematic like circuit design and simulation  or Other real time graphics based applications,  E-XD++ will be the best choice. It has almost all the features of a very professional circuit design software. It supports SVG Importing and Exporting. DXF Importing and Exporting, XML Loading and Sving, many kinds of electronic circuit symbols. The VBScript & JavaScript is used for action controlling of any shapes on the canvas.  It will be the best choice for building your own "Full Customized" Industry software, you do not event need to write one line of code, a very professional and complete functional Multisim like application is created, it will saves you at least 80% of building time and a lot of money.

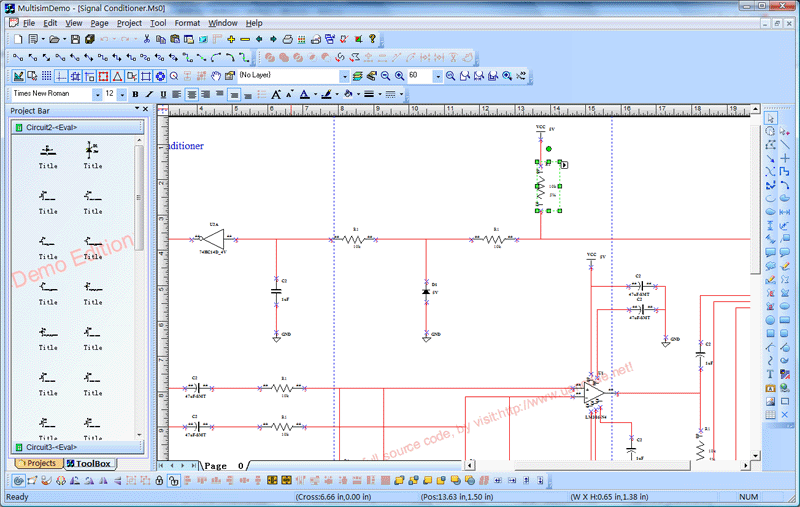

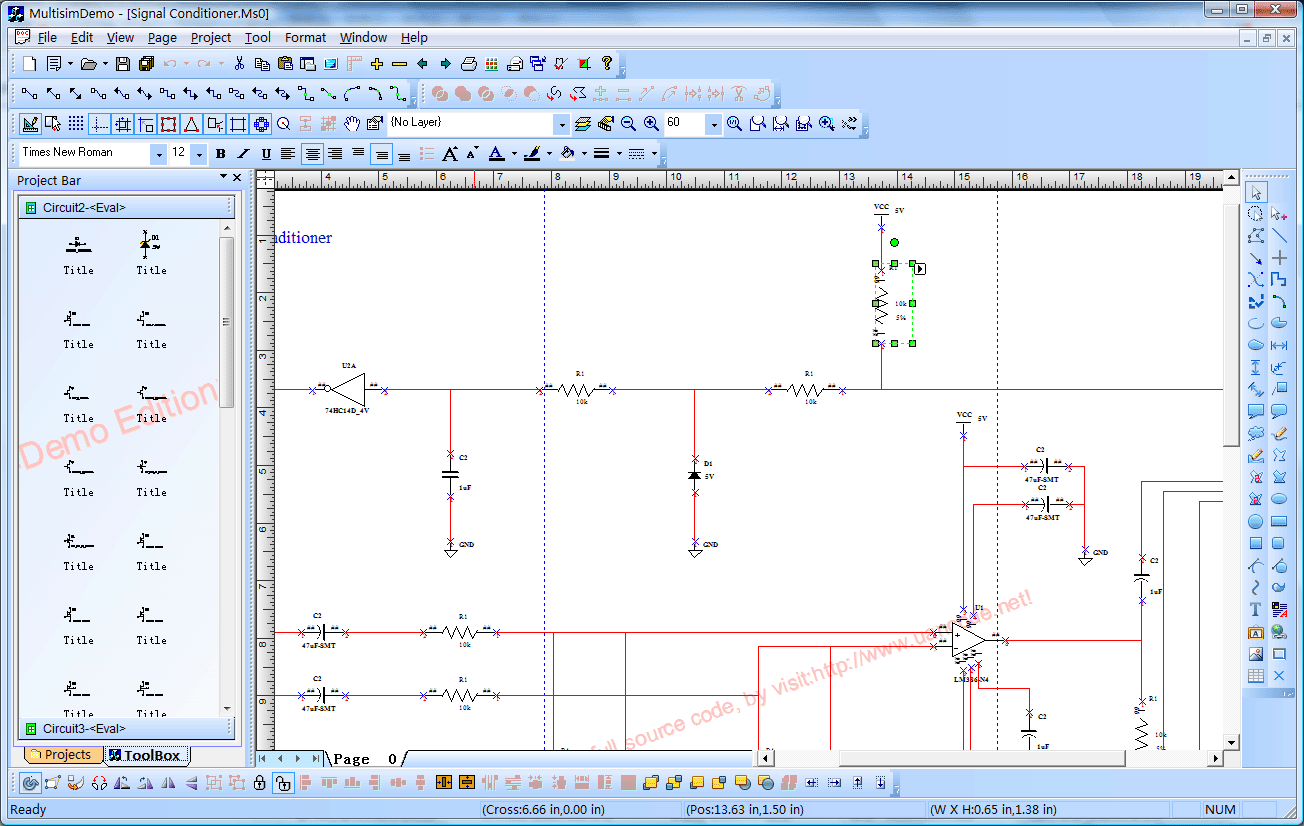

Interface <MultisimDemo>



Product basic functions:

1 A new project:

 Invoke the following dialog box, create a new MultisimDemo projects:


 Subsequently, the project manager will be automatically selected to create a working directory under the directory, the directory name is the project name entered by the user. This new generation of projects has included a lot of information inside, including the default user, and the default configuration information, the user can modify the application process.
 Note: The user-generated new projects will be added to the project list.

 2 Open an existing project

 Select the menu "File / Open Project" command, the pop-up "Browse for folder" dialog box, select the path where the existing projects.  Click "OK" button to open the project file.  If you add the project name and the current project list the project with the same name already exists, then the path where if two projects are the same, the list will work covered by existing projects; if the two projects the path of the different projects will add a list of the same name works.
 You can also open the file menu, select the mcp file format directly to open the project file.

 3 Save an existing project

 Select the menu "File / Save Project" command, the system will automatically save the current project file and save all the modified documentation.

 4 off an existing project

 Select the menu "File / Close project" command, the system will automatically save the current open documents is good, and then close the project file.

 5 most recent list of project files

 The system automatically works to recently opened files are listed in the bottom of the menu, by clicking on the name of any one project open the project file sub-menu.

 6 window manager

 In the Window menu in a series of sub-menu on the canvas so that you can easily switch between any sub-menu, and other operations.

 7 Project Tree

 Tool box on the left there will be a project tree, the tree is listed in the project all the images in the current project files and script files resources. Click the right mouse button you can add new pictures or add new script file.
 The newly added script files will be automatically placed in the specified folder to save.  Double-click the picture or the tree in the script file you can open the file for editing.
 Below:

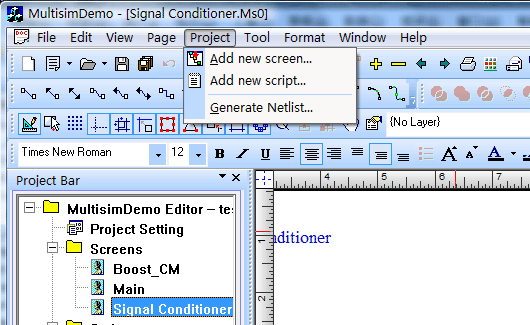

8  Add new picture

 Tool box on the left there will be a project tree, the tree control in the right-click option to add sub-menu screen (you can also directly select the main menu "Project | Insert a new image") to add new pictures.  Added new screen will automatically use the project default settings on this screen.


 If you want to modify the properties of the screen, use the right mouse button menu or the main menu to carry out.

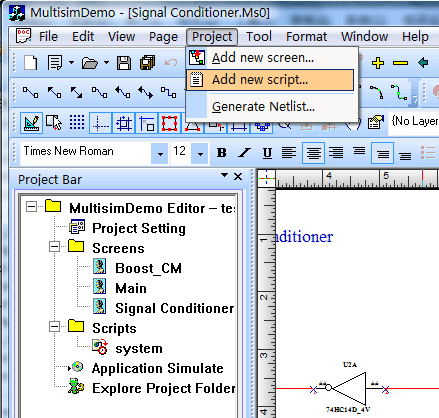

9 Add a new script

 Tool box on the left there will be a project tree, the tree control in the right-click the option "Add a new script" sub-menu (you can also directly select the main menu "Project | Insert a new script") to add new The script file.  Added new script file will automatically use the project-related settings.  Project tree by double-clicking the file icon to edit the script file.  If you need to call the system editing functions, you can double-click on the right list of functions where the function icons to increase.


10 bird's eye view window

 Aerial view of the window system functions can be used for global control.


 11 picture frame features

 Special canvas to draw the border, as shown below.

12 Script Feature

 System supports the footnote function of the canvas can be used to design and edit a footnote:


13. components for editing and moving text labels

 System of composite circuit elements that can be marked in the label directly edit the text and location of mobile, as follows:

1), double-click the text to edit.

 2), click twice on the text label to select it, and move the location.  Below:

14. created between the components and connections between components

 Use the mouse to click on any one component stops, you can create a connection from that point line, and the connection line can be broken several times, and can adjust its position, as shown below:

15, components and the logical relationship between the components:

 All the canvas has a beginning and end connector two endpoints, and all the cable has a clear logical relationship, such as the starting point from which to connect to any device what position and so on.

16, automatically generated NetList:

 Select "Project | automatically generated list of nodes" to automatically generate excel format netlist file.

17, scroll the mouse center button to automatically scale the canvas:

 In the center of the canvas scroll mouse wheel can automatically zoom in on the canvas.

18, canvas translation:

Select the toolbar canvas shift button on the canvas to pan.

19, the design of electronic circuit simulation components:

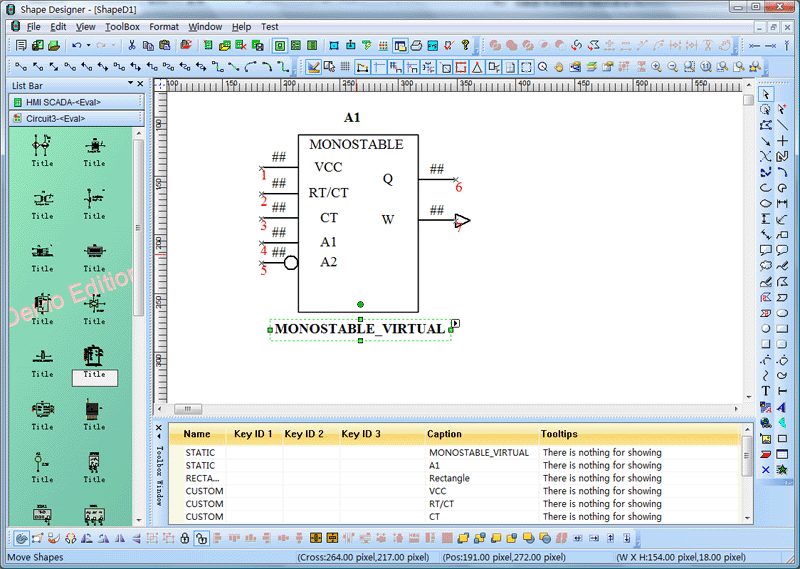

 E-XD++ provides a professional designer ShapeDesigner components to help you quickly design all kinds of simulation components, all components were all vector graphics. Below:

20, System Preferences circuit elements:

 System provides a large number of components, all of these components as vector graphics. Below is a diagram:

21, provided for the circuit design of the pin docking points:

 Circuit elements pin design is very complex, a variety of shapes to choose from, and be exposed to the composite components for a variety of external wiring, this end, we designed a pin for circuit stops, the following toolbar:

21, Other

 E-XD++ the official version of the solution provides more than 500 thousands lines of VC + + source code, you will be developing similar applications save a lot of development time.  Up to hundreds of its features is difficult to fully listed in an article.
