Get Ready to Unleash the Power of UCanCode .NET

The World's Best Visio-Like Software's C++ Source Codes You Can Get!

UCCVisio provides the world's most professional Visio-Like software solution, Office Ribbon UI, more than 3000 various graphic symbols, more than 20 connecting line styles, drag and drop, automatic alignment, automatic arrangement, automatic rerouting, one-click style setting. SVG import and export and more. Not even Microsoft Visio can match the functionality. All these functions and it's complete C++ source codes are open. All functions can be customized as required. UCanCode has been developed and accumulated for more than 24 years. This is the most professional graphics and visualization infrastructure you can buy with money. It can be customized into a wide range of software products such as configuration, simulation, modeling, and flowcharts.

Price and Purchase

Main Features:

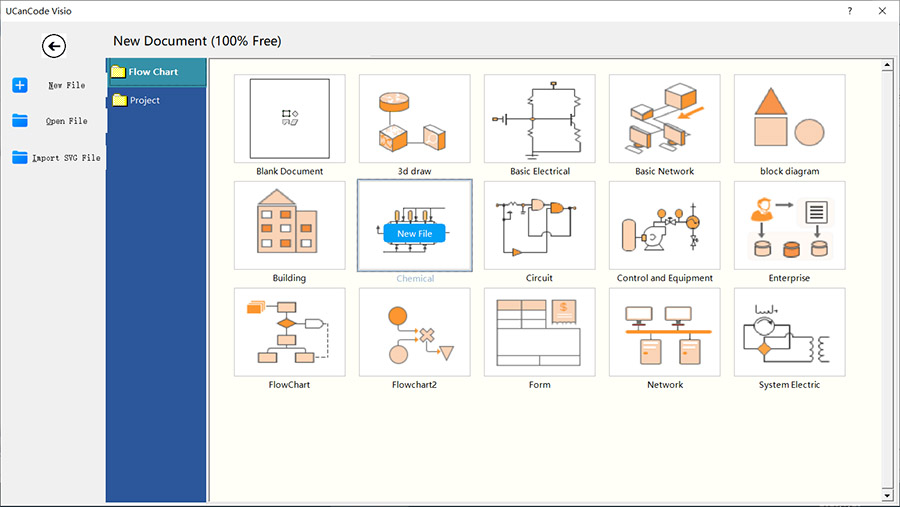

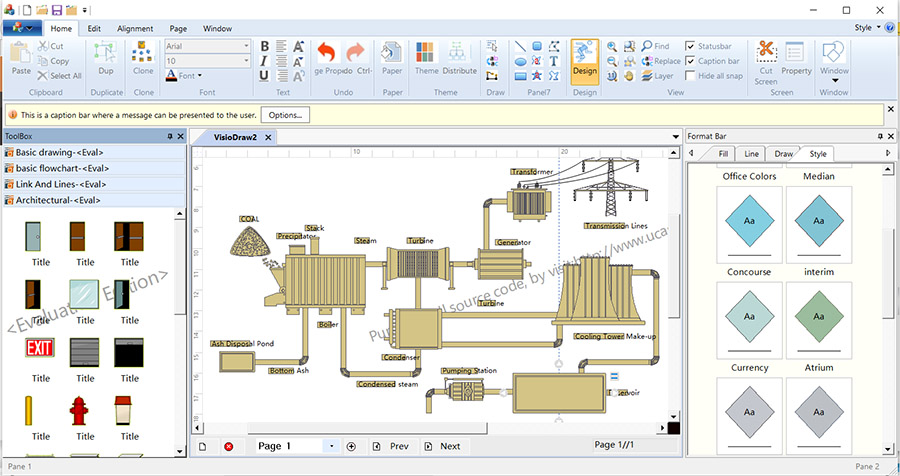

1. Support template function, you can make any desired template according to your needs:

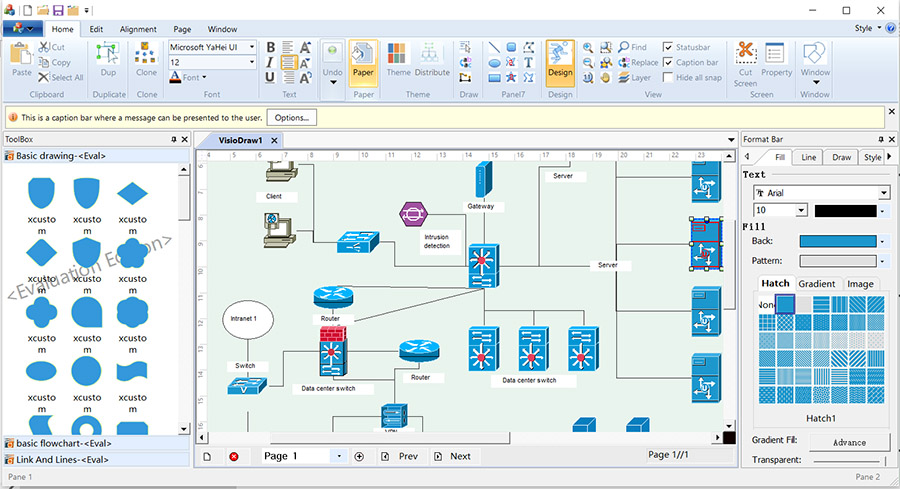

2. Professional Office Ribbon UI, and can be expanded according to needs:


UCCVisio features an advanced user interface that makes it easy for you to get started and work with it. UCCVisio is also cross-platform, with versions for Windows and macOS and has been designed to be similar to other Microsoft Office® products.

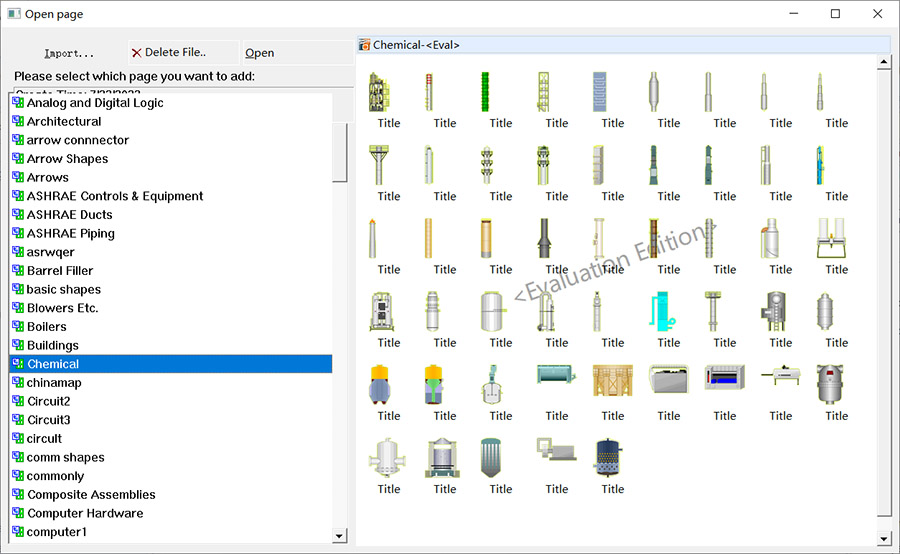

3. More than 3,000 kinds of predefined graphic elements. And can customize more as needed.

4、With UCCVisio you can create amazing vector drawings, by using a large set of tools for drawing lines, curves, rectangles, ellipses, polygons, etc.

UCCVisio also features advanced operations for combining the geometry of several shapes by performing union, subtraction, intersection, etc. This allows you to draw very complex shapes by combining the geometry of other shapes.

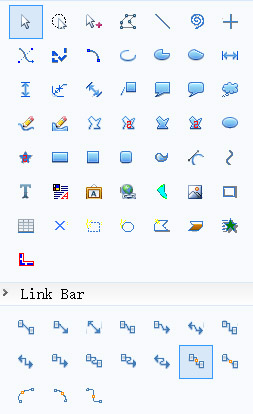

A totoal of more than 30 kinds of drawing tool，It provides a more powerful ability to create and edit graphic elements than Visio, which is simple and fast. And more than 15 kinds of various link line patterns. All functions can be extended as required.

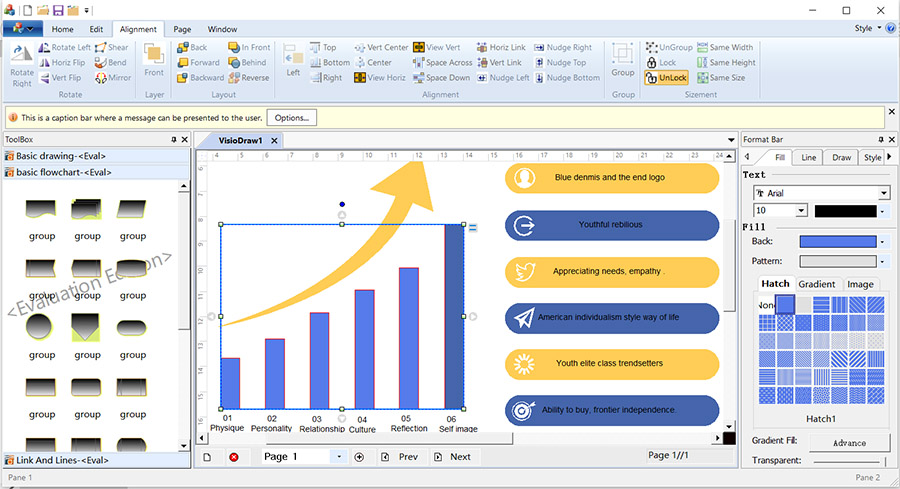

5. Support graphic element combination and ungrouping, alignment, size adjustment, position adjustment, hierarchy, layer and other extensive graphic element operation capabilities.

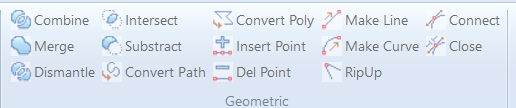

6. Support a wide range of polygon computing functions:
The intersection and union of primitives and primitives, etc.

7. It supports multi-page function similar to Visio, and each page also supports two modes of background and foreground. Outlook also supports Run/Design Mode.

And

8、Many UCCVisio shapes have control points, which allow you to visually modify specific aspects of their geometry. The technology behind this is similar to the Microsoft Visio® “smart-shapes” technology.

UCCVisio shapes can contain raster images (.BMP, .PNG, .JPG etc.) and also vector images in .WMF and .EMF format.

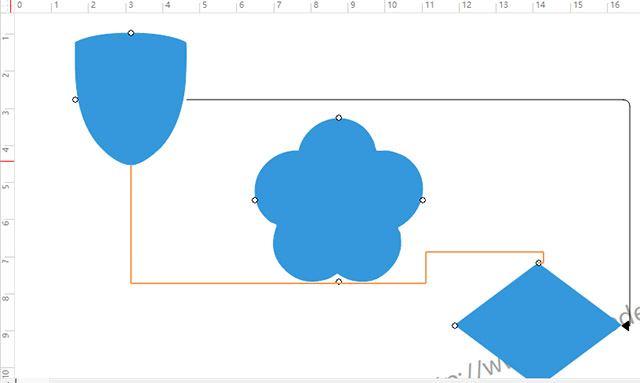

UCCVisio features routable connectors that automatically reroute when you mode their end-points. This allows you to create perfectly connected diagrams.

UCCVisio also features strong support for shapes library management, which allows you to create your libraries.

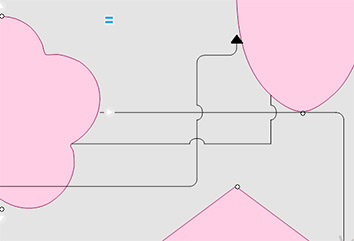

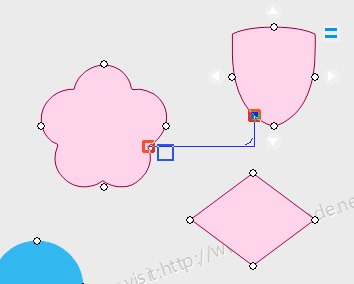

9. The leading intelligent port function does not need to pre-create the port as tediously as Visio, but predicts the position of the port according to the current mouse position, and can automatically draw the connection lines between the primitives at any desired position:

10. You can glue the end-points of 1D shapes (lines, arrows, routable connectors, etc.) to connection points and geometries of other shapes. This makes it possible to visually create advanced drawings that represent complex relations, graphs, and hierarchies.

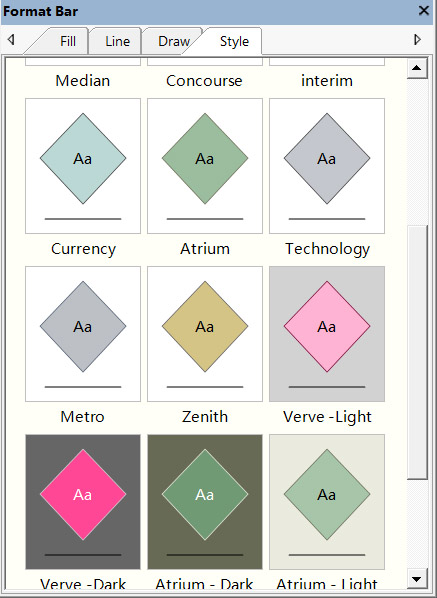

11. Definition of screen style, you can define the perfect style according to your own needs:

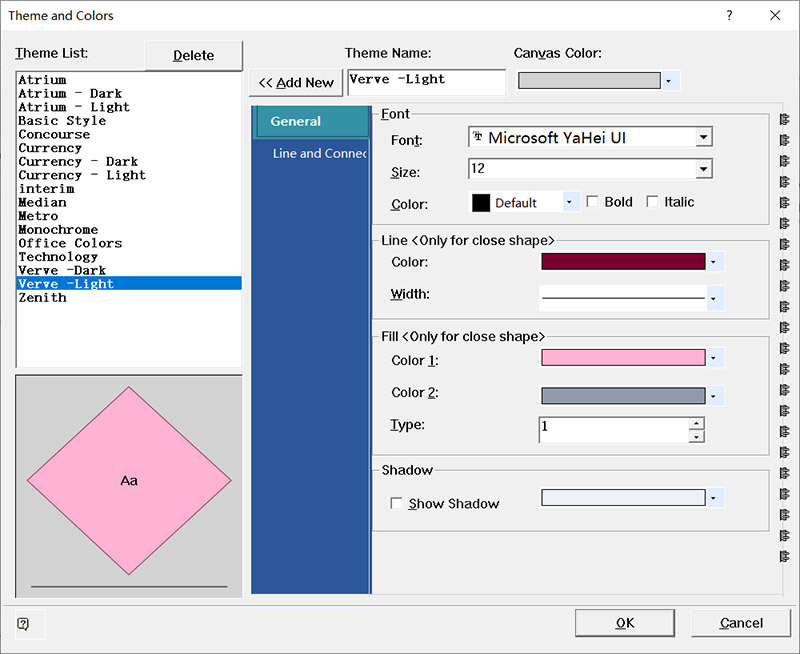

Provides a professional style definition program, you can create your own unique style:

12. To draw, simply drag and drop from the toolbox:

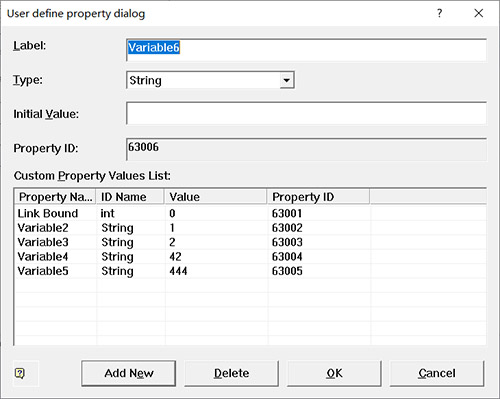

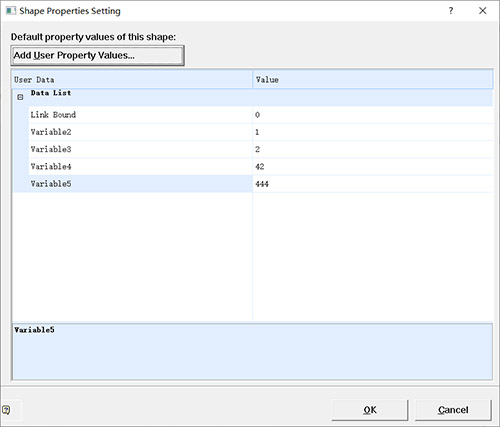

13. Custom attribute data:

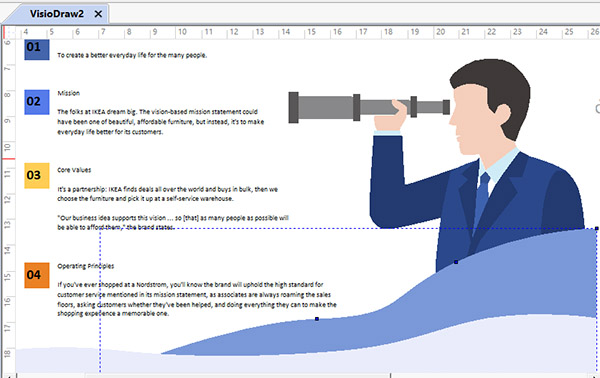

14. Support importing SVG:
Support the most professional SVG import function, able to import special SVG format.

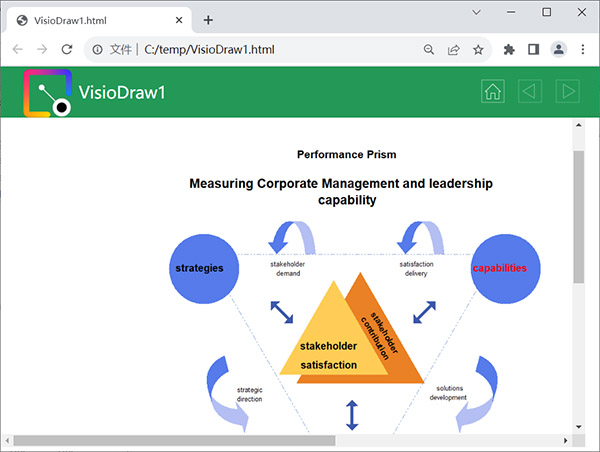

15. Support exporting to a wide range of file formats such as SVG, Jpeg, Png, bmp, etc.

16. The most important thing is that we open source all the code. You can buy it for your money.
Seeing is believing, you can download and try it directly through the link below:

Download Prebuild UCCVisio

Download UCCVisio's Source Codes (It needs E-XD++ Core Library for building)..

Buy all the C++ Source Code:
