VX++ Cross-Platform Graphics C/ C++ Source Code
Kit
Cross-platform industrial control\ modeling
simulation \ configuration\monitoring source
code solution 2024 --- All
C++ source code is 100% provided!
20 years of development and accumulation, 100%
written in C++, 100% open source, 100%
independent and controllable!
As a
world-leading configuration software platform
provider, UCanCode recently launched the VX++
cross-platform open source software platform.

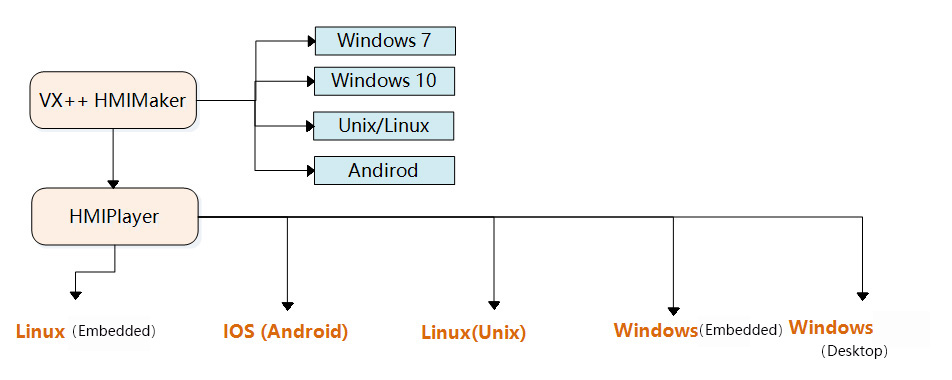

The platform consists of two parts, designer (HMIMaker)
+ runner HMIPlayer + VXLib . The interface part
adopts the QT library design and supports
cross-platform operation. , supports many
operating systems, so as to realize
multi-platform operation and collaboration, with
multi-platform support (Windows, Linux, etc.),
unified development platform, multi-platform
cooperative operation, realization of
intelligence and IoT, and UCanCode VX++ 100%
open source , all functions can be expanded as
needed, all functions can be customized as
needed, and the supported operating systems are
as follows:
The core source code of VX++ is completely
transplanted to UCanCode's leading E-XD++
product, inheriting the stability of E-XD++,
and is an autonomous and controllable
configuration platform for cross-platform,
cloud-network side-end, one-time
configuration, and multi-platform operation.
Cross-platform VX++ software is designed
with a cross-platform C++ class library,
which integrates functions such as graphic
display, vector editing, scripting,
expression operation, logical connection,
SVG import and export, data conversion, and
logical processing, providing all source
code automation platform software. Its
powerful functions, rich protocols, easy to
use, cross-platform support and other
characteristics. It can be used in a wide
range of fields such as simulation,
modeling, configuration, monitoring, logic
diagram, circuit diagram, scientific
computing simulation and so on.
 Download VX++
full-featured free evaluation version -- download
address (
new in 2024 !)
VX++ is a state-of-the-art real-time
graphics framework for
developing highly graphical dynamic
interfaces: not just simple buttons and
menus, but fully animated graphic objects
that display dynamic data and react to user
interaction. It's not just a drawing tool
for creating "pretty pictures" (there are
many), but a graphics engine that allows
developers to define graphical objects and
interact with them
programmatically. Specifically aimed at
application developers, it transforms the
tedious work of low-level graphics coding
into engaging, interactive designs for
high-level behaviors.
The following is the complete list of
supported platforms for VX++ as follows:
1. Linux (embedded)
2、Ubuntu
3. Domestic Linux series (Red Flag, winning
the bid for Kirin)
4. Redhat (Red Hat Linux)
5. All Windows platforms (XP, Win 7, Win 10,
etc.).
6, the full range of general Linux (other
Linux) and so on.
Support processors (all series of X86, Arm,
Qualcomm, HuaWei, Intel, LongXin, etc.),
support all series of embedded ARM.
VX++ supports rich communication protocols
and physical link interfaces, and supports
user-defined protocol extensions. VX++
supports the import of external svg vector
graphics elements, provides thousands of
configuration graphics elements, and
provides toolbox classification for
management. Users can quickly build
configuration screens by simply dragging and
dropping. Users can also customize the
controls (add, delete, etc.) according to
their own needs. Support scripts (script
functions can be expanded at will),
mathematical expression operations,
real-time databases, etc. Support user
rights management, support networking and
executable file publishing capabilities.
The world's leading, 100% open source, our
open source is not like other companies only
open source interface, our source code
contains the entire configuration platform,
including designers, runners, drivers,
scripts and so on. It can be safely used in
any military, aerospace, nuclear power, rail
transit, electric power, energy, chemical
industry, etc.

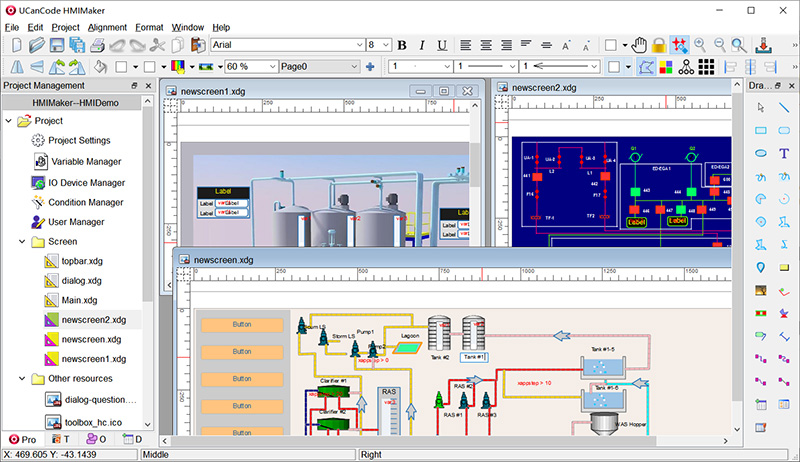

VX++ provides two parts of configuration
screen builder HMIMaker and runner HMIPlayer:
1.
HMIMaker and HMIPlayer
As
the core of UCanCode VX++, the graphic
generator HMIMaker plays a central role in
the toolkit. HMIMaker allows developers to
define the appearance of an interface
independent of its functionality and change
it at any time without touching the code,
thus avoiding time-consuming compile-link
cycles. It provides easy access to all
advanced features of VX++ graphics objects,
including 2D and 3D dynamics, custom events,
viewport and image objects, layers and
subgraphs, groups and object hierarchies. HMIMaker
allows developers to define complex
connections between graphical objects while
leaving functional logic where it belongs: a
more functional programming environment. The
programming API provides seamless access to
high-level resources defined in the graph,
so code doesn't need to care about the
appearance of the interface, only its
logical structure. HMIMaker is used for
screen design and can be easily inserted
into the framework of your
application. Therefore, it still allows
unrestricted access to the graphics object
engine within the component. The
configuration of animation can be used as a
design and configuration platform for
configuration, industrial control, HMI
man-machine interface, simulation, modeling,
logic, etc., with the following basic
functions:
1),
HMIMaker supports the management of the
entire project by means of engineering
projects.
2)
A project supports any number of screens for
management, including adding, deleting, etc.

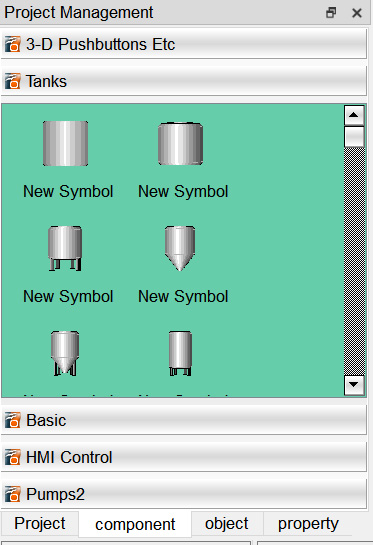

3),
supports the most extensive vector graphics
drawing, arrangement, editing, etc.,
providing more than 3000 various graphic
components, these vector graphic components
can be combined into various states through
the configuration screen, including buttons,
LEDs, state switching, etc.
as
follows:
4),
support js script, and provide a
professional script editor, through the
script, you can control any graphic element
or screen of the screen. Script functions
can be extended according to their needs.
5)
It supports a wide range of graphic elements
such as dashboards, real-time curves, input
controls, etc. These graphic elements will
effectively assist you to design a very
professional screen.
6)

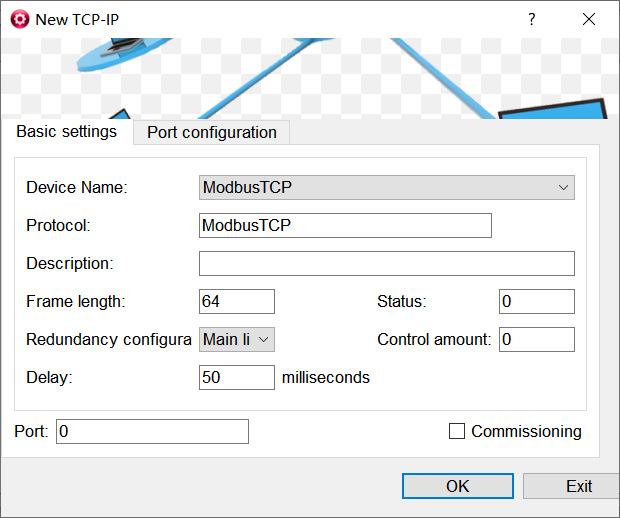

Provide a wide range of design communication
connections, including RS232/RS485,
Ethernet, bus, etc., support a wide range of
protocols such as Modbus RTU, ModbusTCP,
SIEMENS, Mitsubishi, etc., as shown below:
Because it is open source, it can be
extended and customized according to your
own needs.

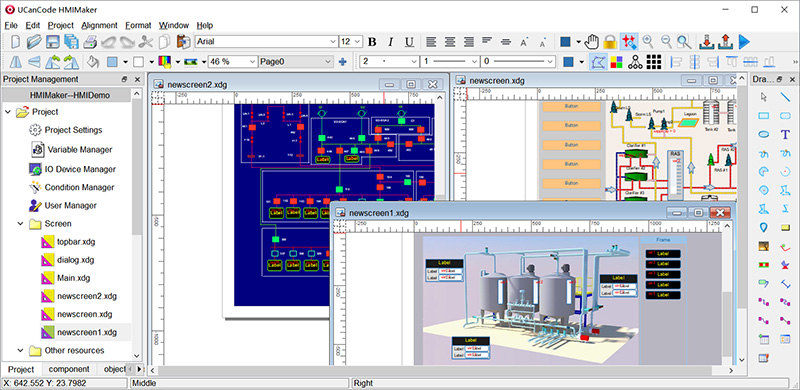

7)
VX++ supports multi-picture splicing mode,
and provides professional splicing tools to
assist you to complete the splicing of
pictures, as shown below:

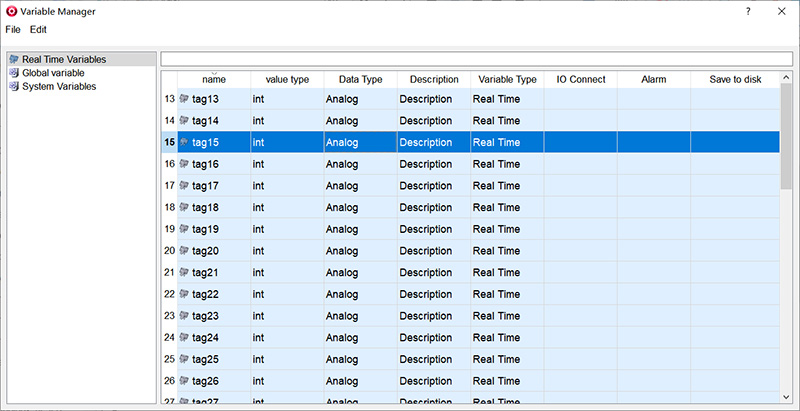

8),
support real-time variables, global
variables, system variables, etc., and
provide a professional variable manager:
9),
provides conditional expression calculation,
user rights management and so on.
10), support networking, stand-alone and
server communication, etc. Professional
real-time database support is provided.

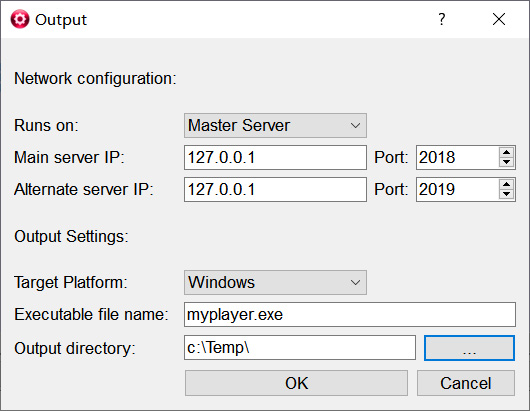

11), provides the output function, you can
output the required exe according to your
own needs.
12), support import and export as SVG. With
html5, you can develop web applications.
13) The
embedded system support capability adopts a
tailorable system architecture, which can
tailor the components according to the
function, and can adapt to the embedded
Linux system. The software can meet the
customized service of users.
14 ) ,
support dual/multi-machine hot backup, IO
redundancy, host redundancy, communication
redundancy, the system can intelligently
detect different types of faults and
automatically perform corresponding
operations, the switching time is within one
second, to ensure system security Reliable
operation.
15), more than 3000 kinds of exquisite
sub-graphs, more than 40 kinds of
statistical controls, flexible trend curves,
and easy-to-use reports.
...
VX++ is divided into configuration
environment and operation environment. The
configuration environment is recommended to
run on the Windows system platform, Linux,
etc., that is, you can configure on Windows
or under Linux.
The operating environment can also run into
multiple environments, that is,
cross-platform operation. Users can download
the assembled project to the running device
through the network or USB to run according
to the configuration project.
VX++ software integrates automation
applications such as device communication,
graphical interface, data conversion, logic
processing, networking, and output as svg
web page operation, and provides a unified
development environment to support
applications: smart device operation, web
access interface, mobile APP There are four
operating modes, such as application and
local computer operation.
The VX++ configuration
tool can work on both Windows and Linux ,
and is a true cross-platform application. It
is very useful for domestic independent
replacement. Projects
designed by VX++ (screens,
scripts, device connections, etc.) can be
directly simulated or run in some large
application systems. When integrated into a
large system, you can call the Api
of the VX++ runtime library through VC++,
C#, Java, or
other C++ ,
etc. The following is a description of the
operation steps:
1. Use HMIMaker to
build a new project, in which we configure
variables (real-time), device connection,
animation, open dialog boxes, multi-screen
jumps, etc.), as shown below:
2. Run Qt
Creator and create
a new project named HMITest1.
3. Open HMITest1.pro
and add VX++ library
support, as follows:
|
QT += core
QT += gui
QT += widgets
QT += network
QT += script
QT += sql
QT += xml
QT +=script
QT += charts
QT += multimedia
QT += multimediawidgets
win32 {
LIBS += -lpthread -lwsock32 -lws2_32
} else {
}
greaterThan(QT_MAJOR_VERSION, 4): QT += widgets
CONFIG += c++11
#Introduce the
path of the header file
INCLUDEPATH += ./Inclu
#Introduce the
path of the library and add the
library
LIBS += -L$$PWD/./lib -lUHMILib |
4. Open Main.cpp and
include the following code:
5. In
the int main ( int argc , char * argv []) function,
define the following code:
|
MainWindow w;
HMIRun runTime("C:/temp/HMIDemo/");
if(!runTime.Load())
{
exit(0);
return -1;
}
if(!runTime.Start())
{
exit(0);
return -1;
}
int ret = 0;
HMIDataTimer *pTimer = new HMIDataTimer();
w.show ( ) ;
ret = a.exec();
delete pTimer;
return right ; |
In this way, the configuration or simulation
screen designed by HMIMaker can
be integrated into your company's own Qt application. The
operation effect is as follows:
Switch screen:
This running screen has a scroll bar, you
can zoom, pan, etc. freely.
Of course, it can also be a combined picture
of multiple pictures spliced together.
The code operation is very simple.
If it is an embedded screen, you only need
to download the HMIRun and
screen projects we provide to the screen to
run at the same time.
2. VX++ application areas:
VX++ open source cross-platform automation
software, supports a wide range of operating
systems, can really run on cross-platforms,
has multi-platform support, and the
development environment can also freely
choose the operating system.
Multi-platform collaboration. The VX++
runtime environment can run on desktops and
laptops, as well as embedded environments
and large servers. The deployment is simple,
only need to copy and download through usb
or network.
Aerospace:

Grid:

Steel:

Human Machine Interface HMI:

Modeling and Simulation:
flow chart:

other:
Building monitoring, computer room
monitoring, simulation training, logic
diagrams, etc.

Big screen:
illustrate:
The domestic operating system won the bid.
The Kylin operating system adopts the
enhanced Linux kernel, which has been widely
used in energy, finance, transportation,
government, central enterprises and other
industries. The winning Kylin enhanced
security operating system adopts the Galaxy
Kylin KACF mandatory access control
framework and RBA role rights management
mechanism, supports the realization of
security policies in a modular manner, and
provides a unified platform for multiple
access control policies. B2-level structured
protection operating system products.
VX++ can run not only on high-performance
industrial computer platforms, but also on
embedded device platforms. Because it adopts
full C++ programming, and most of the codes
are transplanted E-XD++, VX++ has very high
running efficiency. The performance
requirements of the device are very low.
Use VX++
visual enterprise version to build your own
professional industrial control, modeling
simulation ,
monitoring configuration, training simulation platform! Download free evaluation version ( new
in January 2024 !)
All over
300,000 lines of well-designed and rigorously
tested source code are provided without any
reservations!
Provide more than 300 C++ extension classes,
300,000 lines of effective C++ source code,
complete and detailed user online help system
and documentation, and well-designed auxiliary
development tools!
Powerful,
flexible and easy-to-use source library for
visual graphics.
Powerful and flexible to create a wide variety
of diagrams to suit your needs. Product design
specifications, it is easy to use, and in just a
few days you can design a product according to
your needs. We offer full support product
download trials.
Feature
rich.
Super
functional, such as auto layout, multi-level,
collapsible sub-diagram, cell connection point,
XML, SVG, etc., can help you create complex
diagrams quickly and flexibly. Supports a large
number of events: such as click, double click,
hover, selection, rubber band selection, copy,
delete, resize and move support. Supports the
most complex operations: such as drag and drop,
unlimited undo/redo and clipboard operations,
and more.
Save time
and money and gain reliability.
A
picture is worth a thousand words, VX++ provides
over 300,000 lines of well-designed and
well-tested C++ source code! It takes ten years
to develop and has been verified by thousands of
customers around the world, which can save you a
lot of development time and money!
Try it
now!
Don't
just take our word for it, try it! Our free
trial version includes everything you need to
prototype your application. Free technical
support.
 Buy
the full source code:
The official version of the VX++ Visual Graphics
Component Library Enterprise Edition provides
all the source code for
this solution , click the button below to order from
UCanCode :
Contact UCanCode Software
To buy the source code or learn more about with:
Next-->
Promotional personalized database
document printing Solution
|
|
E-XD++Visual
C++/ MFC Products
