Introduction
Someone ucancode.neted in the
VC++ forum how they can add a
status bar to a
dialog and I
foolishly replied saying that all they had to do was
to have a
CStatusBar
member in their dialog
class and that they should call
Create()
from
the OnInitDialog()
handler. Then someone else replied
saying that it didn't work and then I tried it out
myself and to my horror found that nothing happened.
Anyhow I just realized, it's not too complicated a
tucancode.net. I thought I'd write a small article on adding
a status bar to
a dialog. There
is an MSDN sample that does this too, but they
derive a class from
CStatusBar
and do some complicated stuff which is not required
for the usual simple things we do with
status bars.
Eight simple steps
Step 1
I assume that you have a
dialog based MFC application ready for

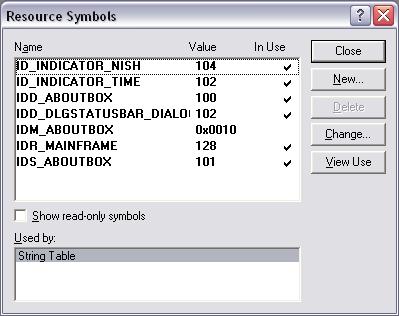

use. Take Resource Symbols from the View menu and
add two new symbols,
ID_INDICATOR_NISH
and
ID_INDICATOR_TIME
.
You can use the default values that VS 6 suggests,
but sometimes it might suggest an already used
value, in which case you might have to manually
change it. I had to anyway. I wonder if this is a
known bug.
Step 2
Open your String Table and add the two entries
there as well -
ID_INDICATOR_NISH
and
ID_INDICATOR_TIME
.
And set some default values, whatever you want to
use. It doesn't really matter.
Step 3
Add a
CStatusBar
member to your main dialog
class.
Collapse |
Copy
Code
CStatusBar m_bar;
Step 4
Open the corresponding cpp file and add
the following on top of the file :-
Collapse |
Copy
Code
static UINT BASED_CODE indicators[] =
{
ID_INDICATOR_NISH,
ID_INDICATOR_TIME
};
Step 5
Now we have to create our
status bar. A nice place to do this would
be in the OnInitDialog
function of our
CDialog
derived class.
Collapse |
Copy
Code
m_bar.Create(this);
m_bar.SetIndicators(indicators,2);
CRect rect;
GetClientRect(&rect);
m_bar.SetPaneInfo(0,ID_INDICATOR_NISH,
SBPS_NORMAL,rect.Width()-100);
m_bar.SetPaneInfo(1,ID_INDICATOR_TIME,SBPS_STRETCH ,0);
RepositionBars(AFX_IDW_CONTROLBAR_FIRST,AFX_IDW_CONTROLBAR_LAST,
ID_INDICATOR_TIME);
Step 6 - background color
By the end of Step 5, we actually have a
status bar on
screen. The two panes show the default values we set
in our string table. But now say, you want to change
the background color. This is wholly optional of
course. You can add this line to the
OnInitDialog(...)
Collapse |
Copy
Code
m_bar.GetStatusBarCtrl().SetBkColor(RGB(180,180,180));
Note that we had to get the underlying
status bar
control to call the
SetBkColor
function.
Step 7 - adding the clock
Say, you want the right pane to show the current
time. First set a timer. Just add this line to the
OnInitDialog(...)
Collapse |
Copy
Code
SetTimer(100,1000,NULL);
Now add the following code to the
WM_TIMER
handler
Collapse |
Copy
Code
void CDlgStatusBarDlg::OnTimer(UINT nIDEvent)
{
if(nIDEvent==100)
{
CTime t1;
t1=CTime::GetCurrentTime();
m_bar.SetPaneText(1,t1.Format("%H:%M:%S"));
}
CDialog::OnTimer(nIDEvent);
}
Step 8 - showing X and Y co-ordinates
Say, you want to show the X,Y co-ordinates of the
mouse as it moves along your
dialog. What you need to do is to
override OnMouseMove
.
Collapse |
Copy
Code
void CDlgStatusBarDlg::OnMouseMove(UINT nFlags, CPoint point)
{
CString s;
s.Format("X=%d Y=%d",point.x,point.y);
m_bar.SetPaneText(0,s);
CDialog::OnMouseMove(nFlags, point);
}
