Get Ready to Unleash the Power of UCanCode .NET

Data Visualization Software, VC++ Source Code Component Solution

The quick and simple way to building Data Visualization Software with  VC++, and the .NET platform

Download this Data Visualization Sample 1

UCanCode provides a complete set of services, consisting of design tools and a software development kit (SDK), for developers who want to create a user interface for industrial monitoring and process control drawing Data Visualization applications. These displays feature highly customized graphical objects that connect to underlying real-world data.

Developers prefer UCanCode's solutions because they are easy to use, completely customizable, and can deploy to both the desktop and the Web. UCanCode is the industry’s leading real-time SPC software, automating quality data collection and analysis

Add Diagrams and Data Visualization to your applications. E-XD++ Diagrammer brings accurate and intuitive diagrams and dashboards to your c++ desktop applications. It offers a comprehensive set of tools, components and graphic objects for creating visualization, editing and monitoring Windows applications.

It is very quickly and easily to use E-XD++ to build any Data Visualization Software:

1. Design the Data Visualization symbols:

With E-XD++ full edition, there is a shapedesigner application shipped, with this diagramming tool, you can use many advance features to build any kind of Data Visualization Software symbols, as below:

When one composite symbol is designed, just use Copy/Paste to place it within the toolbox window at left side. These Data Visualization Symbols will be ready for use in future.

2. Design Data Visualization Software Screen

With E-XD++ full edition, there is also a ready to use Data Visualization Screen design tool shipped, with this tool, you can use any symbols within the toolbox window at left side to build any screen as you want, just drag and drop, very simple and easy:

If you want to identify any shape on the screen, just use the following dialog to define some key value. There are three key values that can be used to do this work, as below:

We change it's key value 1 to K2.

After one Data Visualization Software Screen is finished, you can save it to a xdg file. You can design as many screen as you want.

3. Building your Data Visualization Software

With full edition of E-XD++ Visualization Component, there is an appwizard that will help you building a base framework of Data Visualization Software without written a line of codes, after the base framework of your application is finished, you can import any XDG files into your application, (Please remember the resource type must be XDGRes), to load a Data Visualization Screen just call the following codes, it is very easy:

LoadXdgFromResource(IDR_MAIN, _T("XdgRes"), FALSE);

In fact, this line of code can be called at any place if you want to load any new screen at any time.

4. Update the screen with data:

Mostly we can use the WM_TIMER of CWnd to recieve the data and refresh the Data Visualization Screen, if you want to update only one shape, just call UpdateControl of this shape, but if you want to update a list of shapes one time, we recommend you to call UpdateShapes, this will works more effective, below is the sample codes:


void CAutoDemoView::OnTimer(UINT nIDEvent)
{
	// TODO: Add your message handler code here and/or call default
	if(nIDEvent == ID_TIMER_ID)
	{
		CFODrawShapeList lstUpdate;
		int xx0 = rand() % 20;
		int xx1 = rand() % 18;
		int xx2 = rand() % 25;
		int xx3 = rand() % 16;
		int xx4 = rand() % 12;
		int xx5 = rand() % 21;
		if(pK1 != NULL)
		{
			CString strText;
			strText.Format(_T("%u mcA"), xx0 * xx1);
			pK1->SetLabelText(strText);
			lstUpdate.AddTail(pK1);

		}
		if(pK2 != NULL)
		{
			CString strText;
			strText.Format(_T("%u C"), xx0 * xx2);
			pK2->SetLabelText(strText);
			lstUpdate.AddTail(pK2);
		}

		if(pK3 != NULL)
		{
			CString strText;
			strText.Format(_T("%u Nm/h"), xx0 * xx3);
			pK3->SetLabelText(strText);
			lstUpdate.AddTail(pK3);
		}


		if(pX1 != NULL)
		{
			CString strText;
			strText.Format(_T("%u"), xx0 * xx4);
			pX1->SetLabelText(strText);
			lstUpdate.AddTail(pX1);

			int nValue = xx0 * xx4;
			if(nValue > 200)
			{
				pX1->SetBkColor(RGB(255,0,0));
			}
			else if(nValue > 100)
			{
				pX1->SetBkColor(RGB(255,255,0));
			}
			else
			{
				pX1->SetBkColor(RGB(0,0,0));
			}
		}

		if(pX2 != NULL)
		{
			CString strText;
			strText.Format(_T("%u"), xx0 * xx5);
			pX2->SetLabelText(strText);
			lstUpdate.AddTail(pX2);

			int nValue = xx0 * xx5;
			if(nValue > 200)
			{
				pX2->SetBkColor(RGB(255,0,0));
			}
			else if(nValue > 100)
			{
				pX2->SetBkColor(RGB(255,255,0));
			}
			else
			{
				pX2->SetBkColor(RGB(0,0,0));
			}
		}

		if(pX3 != NULL)
		{
			CString strText;
			strText.Format(_T("-%u"), xx1 * xx5);
			pX3->SetLabelText(strText);
			lstUpdate.AddTail(pX3);

			int nValue = xx1 * xx5;
			if(nValue > 200)
			{
				pX3->SetBkColor(RGB(255,0,0));
			}
			else if(nValue > 100)
			{
				pX3->SetBkColor(RGB(255,255,0));
			}
			else
			{
				pX3->SetBkColor(RGB(0,0,0));
			}
		}

		if(pX4 != NULL)
		{
			CString strText;
			strText.Format(_T("%u"), xx2 * xx3);
			pX4->SetLabelText(strText);
			lstUpdate.AddTail(pX4);

			int nValue = xx2 * xx3;
			if(nValue > 200)
			{
				pX4->SetBkColor(RGB(255,0,0));
			}
			else if(nValue > 100)
			{
				pX4->SetBkColor(RGB(255,255,0));
			}
			else
			{
				pX4->SetBkColor(RGB(0,0,0));
			}
		}


		if(pX5 != NULL)
		{
			CString strText;
			strText.Format(_T("%u"), xx2 * xx4);
			pX5->SetLabelText(strText);
			lstUpdate.AddTail(pX5);

			int nValue = xx2 * xx4;
			if(nValue > 200)
			{
				pX5->SetBkColor(RGB(255,0,0));
			}
			else if(nValue > 100)
			{
				pX5->SetBkColor(RGB(255,255,0));
			}
			else
			{
				pX5->SetBkColor(RGB(0,0,0));
			}
		}


		if(pX6 != NULL)
		{
			CString strText;
			strText.Format(_T("%u"), xx3 * xx5);
			pX6->SetLabelText(strText);
			lstUpdate.AddTail(pX6);

			int nValue = xx3 * xx5;
			if(nValue > 200)
			{
				pX6->SetBkColor(RGB(255,0,0));
			}
			else if(nValue > 100)
			{
				pX6->SetBkColor(RGB(255,255,0));
			}
			else
			{
				pX5->SetBkColor(RGB(0,0,0));
			}
		}

		if(pChartShape != NULL)
		{
			pChartShape->UpdateData(xx0 * xx1, xx0 * xx2, xx0 * xx3);
			lstUpdate.AddTail(pChartShape);
		}

		if(lstUpdate.GetCount() > 0)
		{
			UpdateShapes(&lstUpdate);
		}
	}
	else
	{
		CFODrawView::OnTimer(nIDEvent);
	}
}

If you want to handle the click event, you can DoButtonClickEvent to do that.

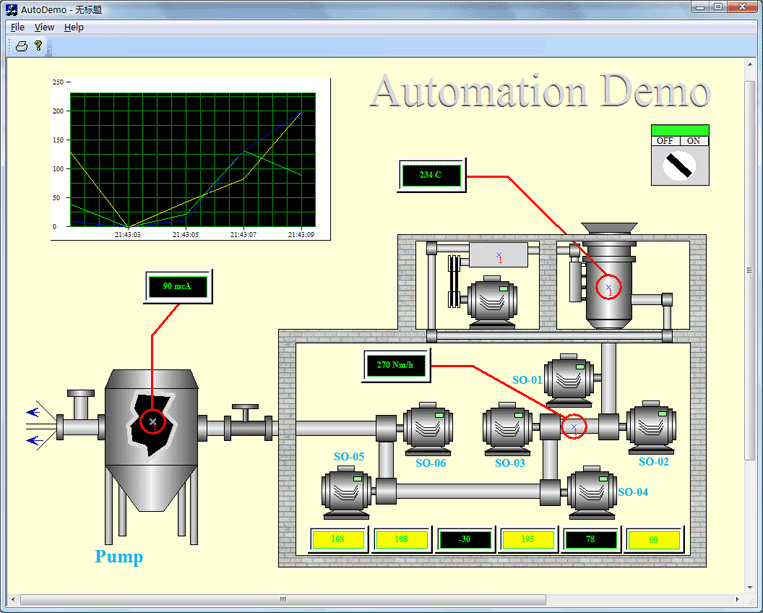

That's all, below is the running - time mode of this sample.

  • Data Visualization Software Component
  • Process Control Diagram
  • Full VC++ Source Code
  •
  • Real - time Drawing
  • Very easy to use shape Designer
  • SVG Import

With E-XD++ Component, you can add advanced Data Visualization functionality to your applications. The E-XD++ Library is a 100% VC++ data rendering and visualization system, built specifically for Visual Studio .NET and designed to bring your User Interface to the printed page. Now you only need a few days for building a very powerful label print or report print application.

The leader in visualization component -- FULL VC++ Source Code Shipped!

XD++ Diagrammer Suite is the the world’s leading VC++ and .NET visualization component. Renowned for incredibly rich graphics, XD++ helps thousands developers build applications that offer unparalleled functionality. Outstanding productivity lowers project risk and reduces maintenance headaches. With 20 years of dedicated research and development, UCanCode leads the market for visualization technologies, providing outstanding customer support.

Powerful, flexible, and easy to use Diagram Components.
Powerful and flexible enough to create diagrams exactly the way you want them to appear. So easy to use that you will be able to prototype your application in just a few minutes.

Feature rich.
With features such as automatic layout, multiple layers, collapsible sub-graphs, snap-to connection points, XML, SVG, and more, E-XD++ Have the power and flexibility you need to create sophisticated diagrams, quickly and easily. Events such as click, double-click, hover, select, rubber-band select, copy, delete, resize and move are supported. Operations such as drag-and-drop, unlimited undo/redo, and clipboard operations are common and complex, and are expected by today's sophisticated users. it full supports importing ArcGis, SVG and DXF File format.

Performance and Scalability.
UCanCode E-XD++ Capable of handling many thousands of nodes and edges, up to hundreds of thousands depending upon the complexity of the nodes you wish to draw and the operations you wish to allow. Our graphical classes are extremely lightweight objects enabling outstanding performance.

Save Time and Money and gain Reliability.
A diagram is worth 1,000 words, and E-XD++ is shipped with more than 500,000 lines of well designed and well tested code! It is used by hundreds of the world's most quality conscious companies. It will saves you thousands of hours of complex coding and years of maintenance.

Download this Data Visualization Sample 1
