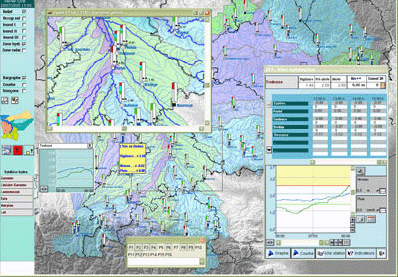

Build your own SCADA Software that Integrating with GIS of data acquisition
graphics application!
Many utilities` information environments have grown
piecemeal, with each system implemented with a vertical view of its
function. This includes the typical supervisory control and data
acquisition (SCADA) and geographic information systems (GIS)-systems
which when integrated, can provide real-time SCADA data on a geographic
view of the electrical network, adding value to both. If your company need to build a
very professional SCADA Software that Integrating with GIS, E-XD++ will be the best choice for you to do that.
"SCADA and GIS have become the key operational tools
of the electricity distribution business. Creating interoperability
between the two systems adds value to both SCADA and GIS, providing
tools which allow us more significant information in the control room,"
E-XD++ Suite Gis and SCADA Visualization Source Code
Suite with be the best choice for building this kind of application, it
includes:
1). Can load and
converting any kind of GIS data that based on ArcGis.
2). All the layers and database records will be imported.
3). A shapedesigner that will be used for symbols creating,
any SVG based vector graphics will be imported.
4). All the features of UCanCode leading HMI & SCADA solution can
be moved to this GIS solution.
Diagrams are a
natural and intuitive way of expressing relationships in your
application data. E-XD++ Components make it easy to add
expressive, interactive graphics Design and graphics Simulation
Visualization to your application. UCanCode's E-XD++
Diagram Component is the most comprehensive set of tools,
components and libraries for creating graphical editing,
visualization, supervision and monitoring tools for the VC++ / .NET
platform.
For Building SCADA & GIS based application, it's very hard to build the
GUI interface, this will take you much long time. With E-XD++, you will
have a world - leading visualization GUI interface Source Code solution,
it will saves you over 90% on building this kind of GUI.
With E-XD++
Enterprise Edition Suite, it has almost all the features of a very
professional GIS and SCADA software on data acquisition & control Part:
Visual C++ / MFC.
It supports from Visual Studio 6.0
to the
latest Visual Studio 2024.
All the features of our GIS and SCADA source code
solution are designed from start to make them to be full customized.
All of it's complete source codes will be shipped with
full edition without any saving.
It supports SVG importing and exporting.
It supports ArcGIS importing.
It supports any kind of Animate, such as moving animate,
sizing animate, rotating animate, GIF, etc.
It supports VBScript & JavaScript.
It has design mode + Run time mode
It supports loading many thousands of symbols within one
screen, it is very high performance.
With shapedesigner
application, you can use over 1000 kinds of basic shapes to create very
complex graphics symbols.
The size of canvas can be
customized freely.
Advanced print and print
preview supports, you don't need take any time on print and print
preview.
Export to bitmap file or
jpeg file supports.
Panning and zooming.
With project setting, you
can do circuit design and simulation at the same place.
Add any customize property
values with one line codes.
Export any part of design
to an image file.
XML Loading and Saving
SVG Importing and Exporting.
Auto CAD DXF Importing and Exporting.
ArcGIS Map file (Shape file) Importing.
More than 1,000 printer drivers.
Support all Windows (32 bits, 64 bits).
Ships with full documents
and 100% source codes
All
the source codes of the following screen
shots will be shipped with full edition of E-XD++ Enterprise Edition Suite:

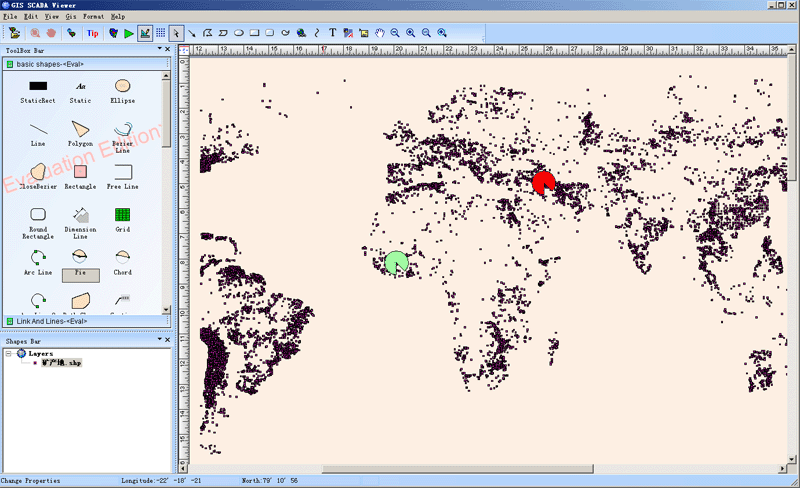

The main screen shot as below:
"Diagramming
business logic when developing a custom application is a time-consuming,
tedious—and necessary—process. With E-XD++ Diagramming Source Code Kit,
you can spend more time focusing on the finer points of your customer's
business and less time worrying about making the business process
diagram look good. "
|
Through its Java, .NET and C++, and
Flex/AIR
graphics libraries and components, UCanCode provides the industry’s
most comprehensive set of graphics tools for creating sophisticated,
interactive user displays. UCanCode's graphics products enhance decision-making
speed and ability by making vast quantities of complex data more comprehensible
and manageable for users. Developers save 50 to 80 percent of development time
when creating displays with UCanCode Visualization.
Download Prebuild Evaluation Kit of
Solution
The leader in visualization component -- FULL VC++
Source Code Shipped!
XD++ Diagrammer Suite is the the world’s
leading VC++ and .NET visualization component. Renowned for incredibly rich
graphics, XD++ helps thousands developers build applications that offer
unparalleled functionality. Outstanding productivity lowers project risk and
reduces maintenance headaches. With 20 years of dedicated research and
development, UCanCode leads the market for visualization technologies, providing
outstanding customer support.
Powerful, flexible, and
easy to use Diagram Components.
Powerful and flexible enough to create diagrams exactly the way you want
them to appear. So easy to use that you will be able to prototype your
application in just a few minutes.
Feature rich.
With features such as automatic layout, multiple layers, collapsible
sub-graphs, snap-to connection points, XML, SVG, and more, E-XD++ Have the
power and flexibility you need to create sophisticated diagrams, quickly and
easily. Events such as click, double-click, hover, select, rubber-band
select, copy, delete, resize and move are supported. Operations such as
drag-and-drop, unlimited undo/redo, and clipboard operations are common and
complex, and are expected by today's sophisticated users. it full supports
importing ArcGis, SVG and DXF File format.
Performance and
Scalability.
UCanCode E-XD++ Capable of handling many thousands of nodes and edges, up to
hundreds of thousands depending upon the complexity of the nodes you wish to
draw and the operations you wish to allow. Our graphical classes are
extremely lightweight objects enabling outstanding performance.
Save Time and Money and gain Reliability.
A diagram is worth 1,000 words, and E-XD++ is shipped with more than 500,000 lines of well designed and well tested code! It is used by hundreds of the world's most quality conscious companies. It will saves you thousands of hours of complex coding and years of maintenance.
The
source codes of this sample is shipped with E-XD++
Library Enterprise Edition,
order
it now.
