VC++ Example: CComboBoxEx with History, ComboBox, CComboBox to history!


 By Nabil Hussein

Abstract

The CHistoryComboEx based on the class ( CHistoryCombo) by Paul S. Vickery, which enables you to read and save the items of a ComboBox from and to the Registry. You can use it also to display the contents of a CRecentFileList object. CHistoryComboEx has the same functions of CHistoryCombo, but instead of the function (AddString()), I have added two new implements to the function (InsertItem()).



How to use it?

  1. Copy (HistoryComboEx.cpp and HistoryComboEx.h) to the folder of your project.


  2. Click on Project\Add To Project\Files... and then select the two files of our class and insert them into your project.


  3. Add programmatically or using the "Resource Editor" an Extended ComboBox control to your dialog.


  4. Using the "Class Wizard", add a member variable of type CComboBoxEx to your Extended CComboBox control. (I'll assume that your variable name is "m_cbeCtrl")


  5. Now open the header file of your dialog-box. Firstly, add this line to the top of it:


    #include "HistoryComboEx.h"

    and then change this line:

    CComboBoxEx   m_cbeCtrl;

    to:

    CHistoryComboEx m_cbeCtrl;
  6. Add the following line to the end of your "OnInitDialog()" or "OnInitialUpdate()" function:

    m_cbeCtrl.LoadHistory("Addresses", "HistoryComboEx");

    This line will add key names "Addresses" to the default key of your application in the Registry. Note: You can change "Addresses" and "History ComboEx" to any other values.

  7. Add the following line to the handler, which will be running, when your application is going to be closed. (OnOK() for example!):

    m_cbeCtrl.SaveHistory();

That's all!

Functions

Here I will write a summary for the functions of CHistoryComboEx. For details please see "HistoryComboEx.cpp". Note: The documentation is the same of that one by Paul S. Vickery's "CHistoryCombo".

CString LoadHistory( LPCTSTR lpszSection,
                     LPCTSTR lpszKeyPrefix,
                     BOOL bSaveRestoreLastCurrent = TRUE,
                     LPCTSTR lpszKeyCurItem = NULL);

CString LoadHistory( CRecentFileList* pListMRU,
                     BOOL bSelectMostRecent = TRUE);

void SaveHistory(BOOL bAddCurrentItemtoHistory = TRUE);

int InsertItem(const COMBOBOXEXITEM *pCBItem)

int InsertItem(CString strItem)

void SetMaxHistoryItems(int nMaxItems);

void ClearHistory(BOOL bDeleteRegistryEntries = TRUE);

Example

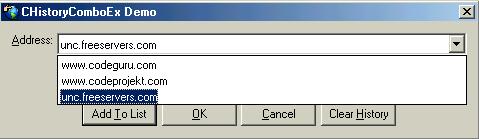

The Demo shows you how to use "CHistoryComboEx" to save and load URLs.

If you have any questions or comments, please let me know!

Downloads

Download source - 49 Kb
