VC++ Example: How to print an ActiveX MSChart Report Chart control Component, Source Code


 By Victor Porter.

A demonstration of printing or print previewing a MsChart component

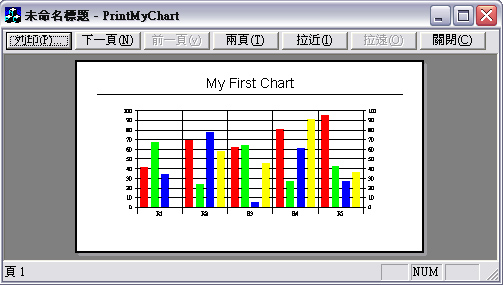

Sample Image - printchart.jpg

Introduction

Just recently, I was given a tucancode.net: "Create a report with a chart." Sounds simple, right? That was what I though too, at first. My first reaction was to use a 3rd party plug-in of some sort, such as Crystal Report. "Sorry, we don't have budget to use a third party item which requires royalty or additional fee." All righty then, how about exporting the data to an excel template? "Sorry, exporting a 10x30000 spread sheet on a Pentium 2-300 would take about an hour before printing." How about I code the report onto the printer's device context? "Great! We'll need that in 3 days. And make sure it has some flexibility for us do some custom configuration and filtering"

*Gasp* Okay, this doesn't leave me with too many choices, so I looked into the ActiveX component, MsChart. I've seen postings of people talking about MsChart in VC++ forums, but they were mostly questions without answers. This lead me to believe that it might not be a very good component. Furthermore, I've never been a very big far for ActiveX. Frankly, I find ActiveX pretty ugly; Just another nightmare for C++ coders like other COM objects. Usually, I am pretty good at avoiding ActiveX when I can, but this time I'm cornered. Searching my favorite VC++ forums came up either empty or unanswered questions when I entered "print + MsChart". Oh boy, this is going to take me forever to figure out myself, right?

Not really. Surprisingly, it only took 5 hours of my Saturday afternoon.

Getting Started

I have to admit, MsChart isn't as difficult to use as I though. Actually, it is fairly easy to incorporate it into your project or report.

First thing you must do is add the MsChart Component into your project. For this, you can refer to JL Colson's article Passing an Array of Values to the Visual C++ MSChart OCX. It's a really nice article to get you started with adding the chart control. Either that, or you can can try to compile the sample source code. However, you might have to run the .reg file enclosed in the zip file so that everything that must be in the registry is there. The only thing you must make sure is that MsChart must reside in a form, so it's easier to create a SDI project with a CFormView as your view base.

How to Print MsChart

Alright. Now let's get down to the code. First thing you would need to do is go into your resource's toolbar and change the printer icon from ID_FILE_PRINT to ID_FILE_PRINT_PREVIEW. This makes it easier for us to access the print preview without always having to go to the File Menu. Next, use the ClassWizard and add OnPrint to your CFormView.

In the header of your view class (i.e. PrintMyChart.h) add this private member:

    protected:
        HBITMAP m_hbitmap;

Also be sure to use the ClassWizard to add a member variable m_chart to your MsChart component.

The actual logic to print the chart is actually quite simple. First, you tell the chart component to copy itself into the clipboard using m_chart.EditCopy(). Once it is in memory, create a DC and past the clipboard bitmap onto it and then transfer it to the printer's DC (pDC). Now, go to your view class and edit the two functions as shown below.

Collapse
BOOL CPrintMyChartView::OnPreparePrinting(CPrintInfo* pInfo)
{
	// make preparation to print

	// order chart to copy itself onto clipboard
	m_chart.EditCopy();

	// make sure the item in clipboard is a bitmap
	if(IsClipboardFormatAvailable(CF_BITMAP))
	{
		if(OpenClipboard())
		{
			m_hbitmap = (HBITMAP)::GetClipboardData(CF_BITMAP);
			CloseClipboard();
		}
	}

	return DoPreparePrinting(pInfo);
}

void CPrintMyChartView::OnPrint(CDC* pDC, CPrintInfo* pInfo)
{
	// Create a text for the title
	CString sTitleHeader=_T("My First Chart");

	// Get the page size and boundaries
	CRect rectPage = pInfo->m_rectDraw;

	TEXTMETRIC tm;
	CFont font;
	CSize textSize;
	int cyChar;

	// Create the font we will be using
	font.CreatePointFont(240, "Arial", pDC);
	CFont *pOldFont=pDC->SelectObject(&font);

	//Set Margin
	rectPage.top+=rectPage.bottom/48;
	rectPage.bottom-=rectPage.bottom/48;
	rectPage.left+=200;
	rectPage.right-=200;

	// Get Text size in order to center
	pDC->GetTextMetrics(&tm);
	textSize=pDC->GetTextExtent(sTitleHeader);
	cyChar = tm.tmHeight;


	// Draw Text (centered)
	pDC->TextOut(((rectPage.right+rectPage.left)/2)-(textSize.cx/2),
	                rectPage.top, sTitleHeader);
	rectPage.top += cyChar + cyChar / 4;

	// Draw header line divider
	pDC->MoveTo(rectPage.left, rectPage.top);
	pDC->LineTo(rectPage.right, rectPage.top);

	// Go to next line
	rectPage.top += cyChar / 4;

	if(m_hbitmap)
	{
		BITMAP bm;
		::GetObject(m_hbitmap, sizeof(BITMAP), &bm);
		CSize chartSize(bm.bmWidth, bm.bmHeight);

		CDC dcMemory,dcScreen;
		dcScreen.Attach(::GetDC(NULL));

		// create "from" device context and select the
		// loaded bitmap into it
		dcMemory.CreateCompatibleDC(&dcScreen);
		dcMemory.SelectObject(m_hbitmap);

		// Print at 85% size within left/right margin
		CSize printSize;
		printSize.cx=(int)(rectPage.right*.85);
		printSize.cy=printSize.cx/chartSize.cx*chartSize.cy;

		// Print chart centered
		pDC->StretchBlt( ((rectPage.right+rectPage.left)/2)-
		         (printSize.cx/2),
				  rectPage.top,
				  printSize.cx,
				  printSize.cy,
				  &dcMemory,
				  0, 0, chartSize.cx, chartSize.cy, SRCCOPY);
		dcMemory.DeleteDC();
	}

	// Revert and Destroy
	pDC->SelectObject(pOldFont);
	font.DeleteObject();

}

Alrighty then. You're done! Now go and design that killer application report you've been dying to do! :)
