MFC GUI Framework: inside Atl & dll server




Steve Bryndin
January 14, 2000

Environment: Windows NT, 9x, XP   Visual C++ 6, VC++.NET

I built this application with VC++ 5. I don't think there should be a problem comiling it with VC++ 6.

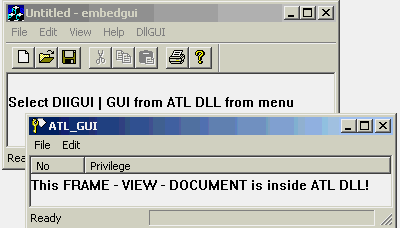

This MFC GUI framework is placed inside ATL DLL server and is invoked by parent application. Parent application manages this window and when parent application terminates so does this embedded window. It behaves much like Microsoft's Outlook Email and Forms, which appear to be a standalone frame/view/doc and which is managed by parent Outlook application.

Whats in it for you? Lots! First - You have only one invoking method inside parent program. After the method was implemented, this DLL can be completely developed standalone (no need to recompile parent app). You can create hundreds of these dlls with frame windows inside and enjoy nice scalability of you parent app. Web applications with doc/view features. Etc. Etc. Etc.

1. I created a MFC single document application with app wizard.

2. Edit InitInstance() function add these lines:

//*********************************

if (!AfxOleInit())

{

AfxMessageBox("Failed to load OLE");

return FALSE;

}

CoInitialize(0);

//*********************************

3. Add ExitInstance() virtual function and insert there this line:

//****************

CoUninitialize();

//*****************

4. Refer to the code in the ATL project how to implement framework.

Downloads

After unzipping files run batch file to register gui. dll. If you compile this project registration should be done automatically.

Downloads

Download demo project - 92 Kb
