GDI+ Examples: Drawing Column Chart



Column Chart

Introduction



A chart is a technique of representing numeric values using colored shapes. The shape(s) can be geometric or not. To draw such a chart, you can use your knowledge of GDI+ techniques. In this exercise, we use the Graphics::DrawRectangle() method to draw a series of rectangles that represent a column chart.



Practical LearningPractical Learning: Creating the Chart


  1. Start a new Windows Forms Application named WeeklySales1

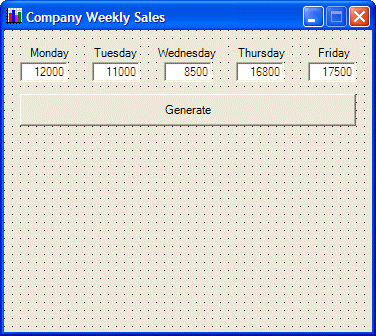

  2. Design the form as follows:

  3. Right-click the form and click View Code and declare the following two variables:

    private:
    	/// <summary>
    	/// Required designer variable.
    	/// </summary>
    	System::ComponentModel::Container ^components;
    	Graphics ^ graphDrawingArea;
    	Bitmap   ^ bmpDrawingArea;
  4. Return to the form
  5. Double-click an unoccupied area on the form and implement its Load event as follows:

    System::Void Form1_Load(System::Object^  sender, System::EventArgs^  e)
    {
    	 bmpDrawingArea   = gcnew Bitmap(Width, Height);
    	 graphDrawingArea = Graphics::FromImage(bmpDrawingArea);
    }
  6. Return to the form and click an empty area on it. In the Properties window, click the Events button Events
  7. Double-click the Paint field and implement its event as follows:

    System::Void Form1_Paint(System::Object^  sender,
    	System::Windows::Forms::PaintEventArgs^  e)
    {
    	 e->Graphics->DrawImage(bmpDrawingArea, 0, 0);
    }
  8. Return to the form
  9. Double-click the Generate button and implement its Click event as follows:

    System::Void btnGenerate_Click(System::Object^  sender,
    				 System::EventArgs^  e)
    {
    	 double monday = double::Parse(this->txtMonday->Text) / 100;
    	 double tuesday = double::Parse(this->txtTuesday->Text) / 100;
    	 double wednesday = double::Parse(this->txtWednesday->Text) / 100;
    	 double thursday = double::Parse(this->txtThursday->Text) / 100;
    	 double friday = double::Parse(this->txtFriday->Text) / 100;

    	 graphDrawingArea->Clear(this->BackColor);

    	 graphDrawingArea->FillRectangle(gcnew SolidBrush(Color::Red),
    					 this->txtMonday->Left+5,
    					 280-monday,    40, monday);
    	 graphDrawingArea->DrawRectangle(gcnew Pen(Color::Black),
    					 this->txtMonday->Left+5,
    					 280-monday,    40, monday);
    	 graphDrawingArea->FillRectangle(gcnew SolidBrush(Color::Blue),
    					 this->txtTuesday->Left+5,
    					 280-tuesday,   40, tuesday);
    	 graphDrawingArea->DrawRectangle(gcnew Pen(Color::Black),
    					 this->txtTuesday->Left+5,
    					 280-tuesday,   40, tuesday);
    	 graphDrawingArea->FillRectangle(gcnew SolidBrush(Color::Fuchsia),
    					 this->txtWednesday->Left+5,
    					 280-wednesday, 40, wednesday);
    	 graphDrawingArea->DrawRectangle(gcnew Pen(Color::Black),
    					 this->txtWednesday->Left+5,
    					 280-wednesday, 40, wednesday);
    	 graphDrawingArea->FillRectangle(gcnew SolidBrush(Color::Brown),
    					 this->txtThursday->Left+5,
    					 280-thursday,  40, thursday);
    	 graphDrawingArea->DrawRectangle(gcnew Pen(Color::Black),
    					 this->txtThursday->Left+5,
    					 280-thursday,  40, thursday);
    	 graphDrawingArea->FillRectangle(gcnew SolidBrush(Color::Turquoise),
    					 this->txtFriday->Left+5,
    					 280-friday,    40, friday);
    	 graphDrawingArea->DrawRectangle(gcnew Pen(Color::Black),
    					 this->txtFriday->Left+5,
    					 280-friday,    40, friday);

    	 graphDrawingArea->DrawRectangle(gcnew Pen(Color::Black),
    					 10, 280, Width - 30, 1);
    	 Invalidate();
    }

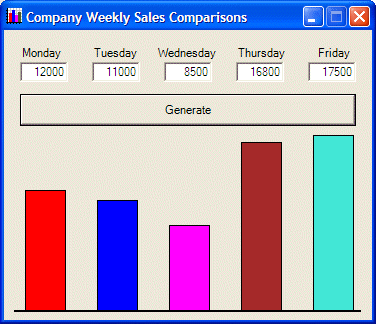

  10. Execute the application and test the form

     Column Chart
  11. After using it, close the form
