Introduction to the Graphical Device Interface, GDI, CClientDC


Introduction to the Device Context


Imagine you want to draw an orange. You can pick up a piece of stone and start drawing somewhere. If you draw on the floor, the next rain is likely to wipe your master piece away. If you draw on somebody's wall, you could face a law suit. Nevertheless, you realize that, to draw, you need at least two things besides your hands and your imagination: a platform to draw on and a tool to draw with.

As it happens, drawing in a studio and drawing on the computer have differences. To draw in real life, the most common platform is probably a piece of paper. Then, you need a pen that would show the evolution of your work. Since a pen can have or use only one color, depending on your goal, one pen may not be sufficient, in which case you would end up with quite a few of them. Since the human hand sometimes is not very stable, if you want to draw straight line, you may need a ruler. Some other tools can also help you draw geometric figures faster.

A device context is everything under one name. It is an orchestra, an ensemble of what need in order to draw. It includes the platform you draw on, the dimensioning of the platform, the orientation and other variations of your drawing, the tools you need to draw on the platform, the colors, and various other accessories that can complete your imagination.

When using a computer, you certainly cannot position tools on the table or desktop for use as needed. To help with drawing on the Windows operating system, Microsoft created the Graphical Device Interface, abbreviated as GDI. It is a set of classes, s, variables, and constants that group all or most of everything you need to draw on an application. The GDI is provided as a library called Gdi.dll and is already installed on your computer.


Grabbing the Device Context


As mentioned already, in order to draw, you need at least two things: a platform and a tool. The platform allows you to know what type of object you are drawing on and how you can draw on it. On a Windows application, you get this platform by creating a device context.

A device context is actually a whole class that provides the necessary drawing tools to perform the job. For example, it provides s for selecting the tool to use when drawing. It also provides s to draw text, lines, shapes etc. To select the platform on which to draw, that is, to create a device context, the MFC provides various classes:

CDC: This is the most fundamental class to draw in MFC. It provides all of the primary s used to perform the basic drawing steps. In order to use this class, first declare a variable from it. Then call the BeginPaint() to initialize the variable using the PAINSTRUCT class. Once the variable has been initialized, you can use it to draw. After using the device context call the EndPaint() to terminate the drawing.

CPaintDC: Unlike the CDC object, the CPaintDC inherently initializes its drawing by calling the BeginPaint() when you declare a CPaintDC variable. When the drawing with this class is over, it calls the EndPaint() to terminate the drawing.

CClientDC: This class is used when you want to draw in the client area of a window.

CMetaFileDC: This class is used to create Windows metafiles.


Getting a Device Context


In order to draw using a device context, you must first declare a variable of the CDC class. This can be done as follows:

CDC dc;

To help with this, the CView class provides a virtual member that can carry the drawing assignments on a program. The method provided is OnDraw() and its syntax is:

void OnDraw(CDC* pDC) = 0;

This means that each class that derives from CView must provides its own implementation of this method. If you use AppWizard to create an application and select a CView-derived base class, the AppWizard would define a basic implementation of OnDraw() for you. For a CView-based application, this can be a good place to perform a lot of your drawing.

As you can see, the OnDraw() method is passed a pointer to CDC. This allows you to use the pDC pointer as a variable and draw on the view object with it.

Declaring a CDC variable or receiving it as an argument to a gives you a device context (DC) you can use. This DC initializes the drawing with some default objects such as a pen to draw the most basic points or lines.

Starting a Device Context's Shape

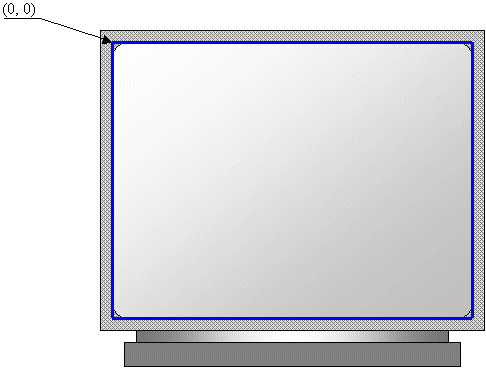

To keep track of the various drawings, the device context uses a coordinate system that has its origin (0, 0) on the top-left corner of the desktop:

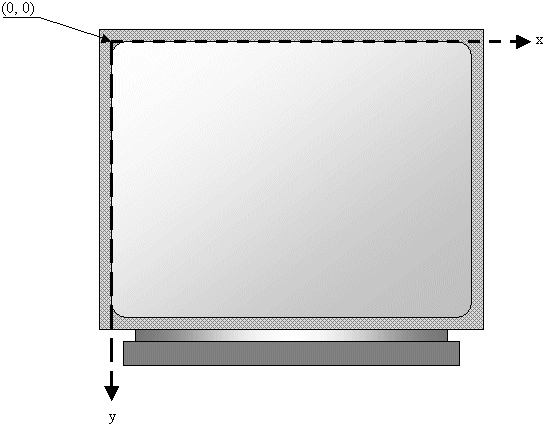

Anything that is positioned on the screen is based on this origin. This coordinate system can get the location of an object using a horizontal and a vertical measurements. The horizontal measures are based on an x axis that moves from the origin to the right right direction. The vertical measures use a y axis that moves from the origin to the bottom direction:

Origin and orientation of axes

This means that, if you start drawing something such as a line, it would start on the origin and continue where you want it to stop.
