VC++ Programming: Docking Toolbars and CControlBar, Side-By-Side, EnableDocking



  • Download demo project - 29 Kb

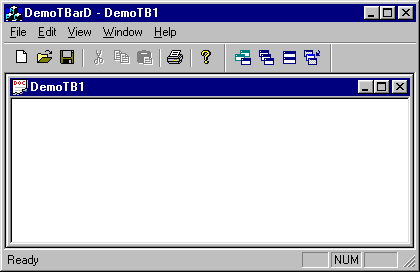

    Sample Image - toolbar_docking.gif

    There are many articles about docking toolbars, however, I felt that this was important enough to mention here. The same information can be found at Microsofts MSDN site, here it is in a nutshell: Add the following method to your CMainFrame class:

    void
    CMainFrame::DockControlBarBottomOf(CControlBar* Bar,CControlBar* BottomOf)
    {
    CRect rect;
    DWORD dw;
    UINT n;

    RecalcLayout();
    BottomOf->GetWindowRect(&rect);
    rect.OffsetRect(0,1);
    dw=BottomOf->GetBarStyle();
    n = 0;
    n = (dw&CBRS_ALIGN_TOP) ? AFX_IDW_DOCKBAR_TOP : n;
    n = (dw&CBRS_ALIGN_BOTTOM && n==0) ? AFX_IDW_DOCKBAR_BOTTOM : n;
    n = (dw&CBRS_ALIGN_LEFT && n==0) ? AFX_IDW_DOCKBAR_LEFT : n;
    n = (dw&CBRS_ALIGN_RIGHT && n==0) ? AFX_IDW_DOCKBAR_RIGHT : n;

    DockControlBar(Bar,n,&rect);
    }

    void
    CMainFrame::DockControlBarLeftOf(CControlBar* Bar,CControlBar* LeftOf)
    {
    CRect rect;
    DWORD dw;
    UINT n;

    RecalcLayout();
    LeftOf->GetWindowRect(&rect);
    rect.OffsetRect(1,0);
    dw=LeftOf->GetBarStyle();
    n = 0;
    n = (dw&CBRS_ALIGN_TOP) ? AFX_IDW_DOCKBAR_TOP : n;
    n = (dw&CBRS_ALIGN_BOTTOM && n==0) ? AFX_IDW_DOCKBAR_BOTTOM : n;
    n = (dw&CBRS_ALIGN_LEFT && n==0) ? AFX_IDW_DOCKBAR_LEFT : n;
    n = (dw&CBRS_ALIGN_RIGHT && n==0) ? AFX_IDW_DOCKBAR_RIGHT : n;

    DockControlBar(Bar,n,&rect);
    }

    Now, in your CMainFrame::OnCreate, instead of using DockControlBar, use DockControlBarLeftOf:

    	m_wndToolBar1.EnableDocking(CBRS_ALIGN_ANY);
    	m_wndToolBar2.EnableDocking(CBRS_ALIGN_ANY);
    	EnableDocking(CBRS_ALIGN_ANY);
    	DockControlBar(&m_wndToolBar1);
    	DockControlBarLeftOf(&m_wndToolBar2,&m_wndToolBar1);


    This will dock m_wndToolBar2 left of m_wndToolBar1.

  •
