VC++ Article: Draw Image Background and CScrollView text with bitmap brush and PreCreateWindow




Introduction

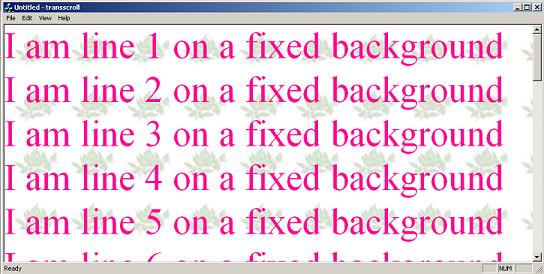

This vc++ article explains how to scroll text on a fixed image background in VC++ 6.0. I have searched the internet but could not find any simple article on this. So, I started experimenting on this and finally found a solution. Well, I have tested this on WinXP only.

Although the primary aim of this article is to display scrolling text on fixed background, it also covers how to draw a background with a bitmap brush.

Create an MFC Doc/View Project

Create an MFC doc/view project and select CScrollView as the base view class. We have selected CScrollView as base for our view class because it handles all the scrolling stuff. Now add a bitmap resource which you want as window background. Now create a CBitmap variable to load your bitmap resource in your frame window class.

Collapse Copy Code
class CMainFrame : public CFrameWnd
{
	protected: // create from serialization only
	CMainFrame();
	DECLARE_DYNCREATE(CMainFrame)

	.
	.
	.
	CBitmap m_bmBG;

In the PreCreateWindow() virtual function, change the extended style as follows:

Collapse Copy Code
cs.dwExStyle |= WS_EX_COMPOSITED;

WS_EX_COMPOSITED is an Windows extended style and MSDN says that this style makes painting all descendants of a window in bottom-to-top painting order using double-buffering. It will serve our purpose. In OnCreate() handler function, load our bitmap.

Collapse Copy Code
int CMainFrame::OnCreate(LPCREATESTRUCT lpCreateStruct)
{
	if (CFrameWnd::OnCreate(lpCreateStruct) == -1)
		return -1;
	.
	.
	m_bmBG.LoadBitmap(IDB_BITMAP1);
	return 0;
}

Add WM_ERASEBKGND Windows message handler. Here, we will be creating pattern brush from our bitmap and select it into the device context and fill the client area. The code looks like this:

Collapse Copy Code
BOOL CMainFrame::OnEraseBkgnd(CDC* pDC)
{
	// TODO: Add your message handler code here and/or call default
	CBrush hbr,*phbrOld;
	CRect rect;

	hbr.CreatePatternBrush(&m_bmBG);
	phbrOld= pDC->SelectObject(&hbr);
	GetClientRect(&rect);
	pDC->FillRect(&rect,&hbr);

	pDC->SelectObject(phbrOld);
	hbr.DeleteObject();

	return TRUE;
}

Don't forget to add the following line in Mainfrm.h:

Collapse Copy Code
#define WS_EX_COMPOSITED 0x02000000L

In the view class handle WM_CREATE message and in the handler, add the following code:

Collapse Copy Code
int CTransscrollView::OnCreate(LPCREATESTRUCT lpCreateStruct)
{
	if (CScrollView::OnCreate(lpCreateStruct) == -1)
		return -1;

	CClientDC dc(this);
	m_ftTimes.CreatePointFont(500,"Times New Roman",&dc);

	CFont *pOldFont;
	pOldFont = dc.SelectObject(&m_ftTimes);

	TEXTMETRIC tm;
	dc.GetTextMetrics(&tm);
	m_nLineHt = tm.tmHeight + tm.tmExternalLeading;

	dc.SelectObject(pOldFont);
	return 0;
}

We have created 50 point Times New Roman font and selected into our client dc. Calculate the line height and store it. Don't forget to create CFont m_ftTimes and int m_nLineHt class variables. Now handle WM_ERASEBKGND message. Just return TRUE in the message handler. Change the OnInitialUpdate() function, change the code.

Collapse Copy Code
void CTransscrollView::OnInitialUpdate()
{
	CScrollView::OnInitialUpdate();

	CSize sizeTotal;
	// TODO: calculate the total size of this view
	sizeTotal.cx = 500;
	sizeTotal.cy = 25 * m_nLineHt;
	SetScrollSizes(MM_TEXT, sizeTotal);
}

We are going to display 25 lines. We are creating a view large enough to show these lines.

In OnDraw(), we are going to draw only those lines which will become visible when scrolling. Initially all the lines will be drawn.

Collapse Copy Code
void CTransscrollView::OnDraw(CDC* pDC)
{
	CTransscrollDoc* pDoc = GetDocument();
	ASSERT_VALID(pDoc);
	// TODO: add draw code for native data here
	CFont *pOldFont;

	int ct;

	pDC->SetBkMode(TRANSPARENT);

	int start = GetDeviceScrollPosition().y /m_nLineHt -1;
	if (start < 0) start =0;

	CRect rcClient;

	GetClientRect(&rcClient);

	ct = start + rcClient.Height()/m_nLineHt + 3;

	if( ct > 25) ct=25;

	pOldFont = pDC->SelectObject(&m_ftTimes);

	pDC->SetTextColor(RGB(255,12,146));

	for(int i=start;i<ct;i++)
	{
		CString s;
		s.Format("I am line %d on a fixed background",i+1);
		pDC->TextOut(0,i * m_nLineHt,s);
	}

	pDC->SelectObject(pOldFont);
}

As we know on scrolling, ScrollWindow() scrolls the window contents, we need to draw only the lines that come to visibility. So we have calculated the starting line number and the ending line that will be visible. We have drawn only those lines. Note that initially all lines will be drawn.
