This project mainly deals with reading a dxf file, but in order to demonstrate the reader is working I also included a viewer, which interpretes the data and draw it on the screen. In fact, at the beginning my sole purpose was to extract data from a DXF file but later on interpretation and drawing of the data on the screen started to take lot much more time and shaded the priority of the data extraction. After all of these here is the result.


There are a couple of DXF writer projects here in UCanCode (one is from Omid Shahabi, the other is from Claude Gagnon), but I couldn't find a DXF reader which reads DXF files. After a various scans through the net I came across the DXF specification of the AutoCad and I decided to make my own reader. But then I found out that a reader by itself will have no value, there should also be a viewer. And the project become partially a DXF reader and mainly a viewer program, and I also made a drawing editor. However, the only interaction that the editor presents to the user is to highlight the shapes (to highlight keep shift button pressed while moving the cursor)...all drawing are made by the software. (I'll try to provide details later on.)

General Structure

 _________      ________________________________         ________        _______
---------      -------------------------------------         ---------         --------

Well, as you can see the structure is as above. The data is extracted from the DXF file and interpreted and then necessary methods of the viewer is called and the result is shown on the screen.

Although the intended structure is as above, the code itself is not separated this much.

The application is a MDI application. You can open multiple DXF files for viewing.

There is a Canvas class for drawing and a Shape class for defining objects. Currently Line, Polyline, Circle and Arc shapes of the Autocad can be recognized. In near future I'm planning to add B-Spline, too.

DXF Interpretation methods are included to the canvas class. Separating these methods from the drawing methods would be much better but for now this is all I can present.


When you click File/Open the following method will be called:

Collapse | Copy Code
private void menuItem2_Click(object sender,
                 System.EventArgs e)
//Opens openfile dialog to select a DXF file
    inputFileTxt = "";

    openFileDialog1.InitialDirectory = "c:\\" ;
    //sets the initial directory of the openfile dialog

    openFileDialog1.Filter = "dxf files (*.dxf)|*.dxf|All" +
        " files (*.*)|*.*" ; //filters the visible files...

    openFileDialog1.FilterIndex = 1 ;

    if (openFileDialog1.ShowDialog() ==
    //open file dialog is shown here...
    //if "cancel" button is clicked then
    //nothing will be done...
        inputFileTxt = openFileDialog1.FileName;
        //filename is taken (file path is also
        //included to this name example:
        // c:\windows\system\blabla.dxf

        int ino = inputFileTxt.LastIndexOf("\\");
        //index no. of the last "\" (that is before
        // the filename) is found here

        newCanvas = new Canvas(); //a new canvas is created...
        newCanvas.MdiParent = this; //...its mdiparent is set...
        newCanvas.Text = inputFileTxt.Substring(ino+1,
                   inputFileTxt.Length - ino - 1);
        //...filename is extracted from the text.(blabla.dxf).
        newCanvas.MinimumSize = new Size (500, 400);
        //...canvas minimum size is set...

        if(inputFileTxt.Length > 0)
            //the filename is sent to the method
            // for data extraction and interpretation...

        newCanvas.Show(); //the canvas is displayed...

As mentioned above DXF interpretation is made in the Canvas class. Canvas class is a Windows Form. In addition to the standard namespaces the following namespaces are included:

Collapse | Copy Code
using System.IO;
using System.Drawing.Drawing2D;
using System.Data;

The ReadFromFile(string filename) method of the Canvas deals with extracting data from the DXF file and forwarding data to the necessary drawing methods.

Collapse | Copy Code
public void ReadFromFile (string textFile)
// Reads a text file (in fact a DXF file)
// for importing an Autocad drawing.
    string line1, line2;
    //these line1 and line2 is used for
    //getting the a/m data groups...

    line1 = "0"; //line1 and line2 are are initialized here...
    line2 = "0";
    long position = 0;

    theSourceFile = new FileInfo (textFile); //the sourceFile is set.
    StreamReader reader = null; //a reader is prepared...

        reader = theSourceFile.OpenText();
        //the reader is set ...

    catch (FileNotFoundException e)
        MessageBox.Show(e.FileName.ToString() + " cannot be found");

        MessageBox.Show("An error occured while opening the DXF file");

    //This part interpretes the drawing objects
    //found in the DXF file...

        if (line1 == "0" && line2 == "LINE")
        else if (line1 == "0" && line2 == "LWPOLYLINE")
        else if (line1 == "0" && line2 == "CIRCLE")
        else if (line1 == "0" && line2 == "ARC")
        GetLineCouple (reader, out line1, out line2);
        //the related method is called
        //for iterating through the text file
        //and assigning values to line1 and line2...
    while (line2 != "EOF");

    reader.DiscardBufferedData(); //reader is cleared...
    theSourceFile = null;
    reader.Close(); //...and closed.

Let me explain a little bit about the structure of a DXF file. In DXF files (they can be opened in Notepad) the data is stored in two-line (bi-line, dual, coupling..what ever you call it) structures. The first line contains a kind of an identifier (or a Tag) and the second line contains the data value. So in order to interpret a dxf file we must interperet lines two-by-two.

Depending on this dual structure we can interpret all entities that reside in a DXF file. But currently only LINE, LWPOLYLINE, CIRCLE and ARC entities can be recognizable. For near future I'm planning to add BSPLINE.

I provided plenty of comments in the source code, so please look in the source code itself for explanation of the modules.

DXF Viewer

Viewer part contains much more coding than the reader. As I mentioned above currently I can draw a limited number of shapes. I hope to expand it in near future.

While I'm developing the Viewer I got lot's of ideas and knowledge from the UCanCode. It varies from double buffering techniques to making a GradientBackground.

In the beginning I said that the viewer is a MDI application. In this way you can open multiple DXF files to view. After opening a file, if you click on the "Window" button in the main menu you can see a list of the opened windows.

To make this add a menu item to the main menu, and then in its properties find MdiList and change its value to "true".

I made the gradient background with overriding OnPaintBackground event:

Collapse | Copy Code
protected override void
         OnPaintBackground(System.Windows.Forms.PaintEventArgs e)
//all drawing is made here in OnPaintBackground...
    //you must pass "e" to the base method

    Graphics g = e.Graphics;
    Rectangle rect = new Rectangle(this.pictureBox1.Location,
    //In fact the pictureBox1 is hidden,
    // the sole purpose of it is
    //to get its dimensions for defining the drawing area.

    System.Drawing.Drawing2D.LinearGradientBrush brush =
        new System.Drawing.Drawing2D.LinearGradientBrush(
        rect, Color.SteelBlue, Color.Black,
    if (this.WindowState != FormWindowState.Minimized)
        e.Graphics.FillRectangle(brush, rect);
        //gradient background

        Draw(g); //All drawing is made here...




The main purpose of this project is to demonstrate that the dxf files can be read with the above mentioned techniques. In fact, the viewer part has a secondary priority at the beginning. Later on I paid some attention to it, but I cannot claim that the viewer is composed of the best practices.

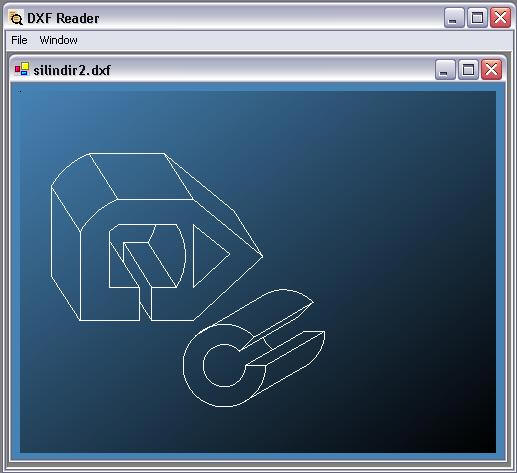

The compressed file for the demo application the executable file and two sample dxf files. One of the dxf files is the one that can be seen in the screenshot. The drawing seems to be 3-D but it is not. it is drawn in 2D...
